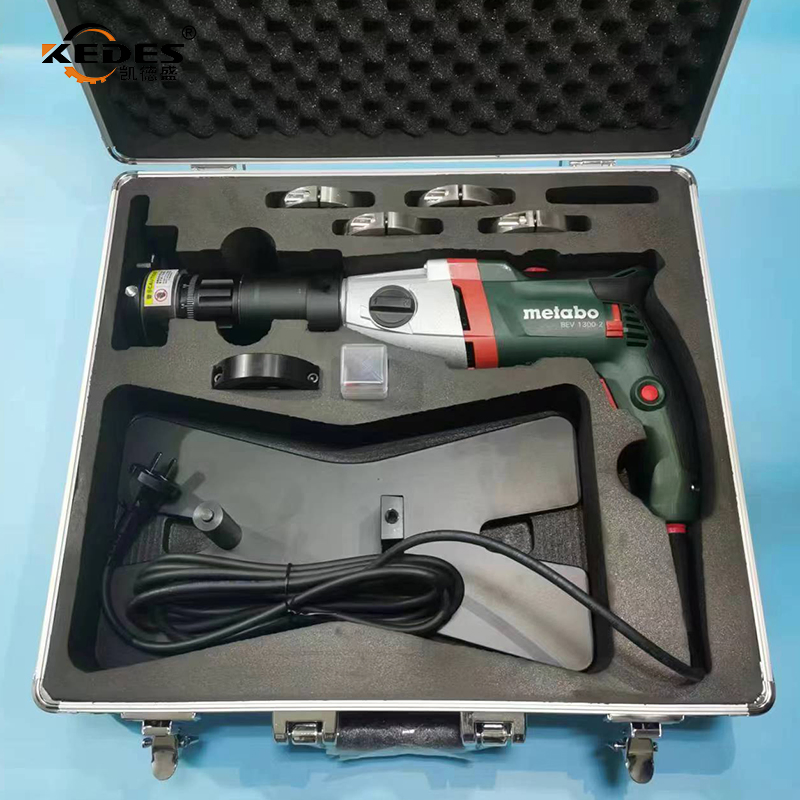

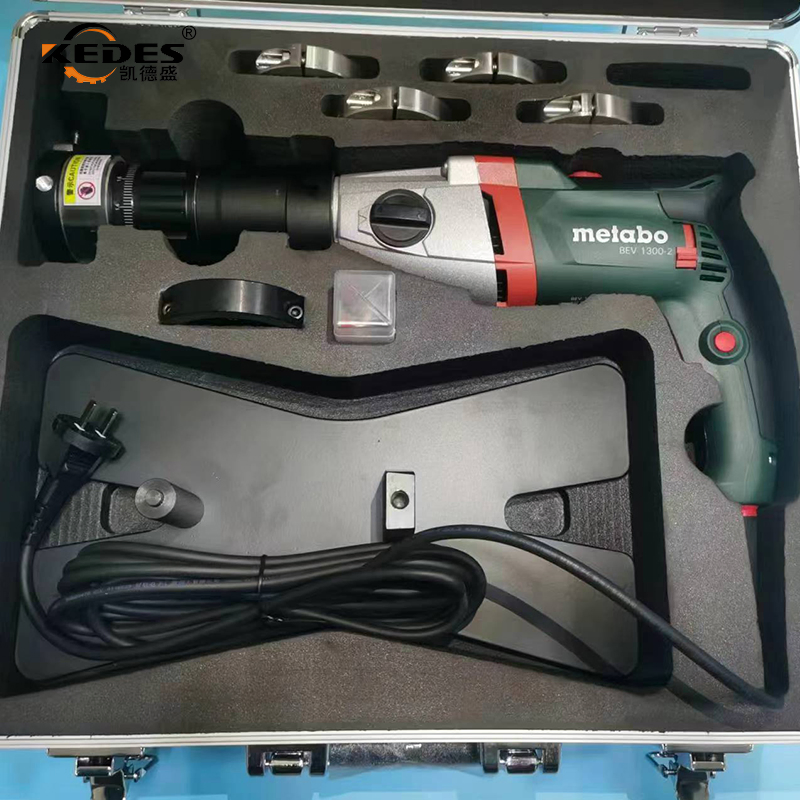

Industrial Grade Handheld Tube Facing Machine for Stainless Steel
Product Description
Basic Information
Model NO.
LPM-1.5DC
Automation
Automatic
Warranty
1 Year
Rated Power
1.3kw
Material
Stainless Steel
Cutting Thickness
5mm
Voltage
220V
Origin
China
Product Overview
LPM Series Rechargeable Flattening Machine
Specialized in levelling thin-walled pipe ends for high-precision welding and manufacturing.
Specialized in levelling thin-walled pipe ends for high-precision welding and manufacturing.
- Widely used in electronics, pharmaceuticals, and biochemical industries.
- High-precision flat-face processing for thin-walled stainless steel.
- Burr-free finish ensuring the pipe end is perfectly vertical to the axis.
- Compact structure and easy operation for tool and pipe loading.
- Special coated cutting tools for long service life and high precision.

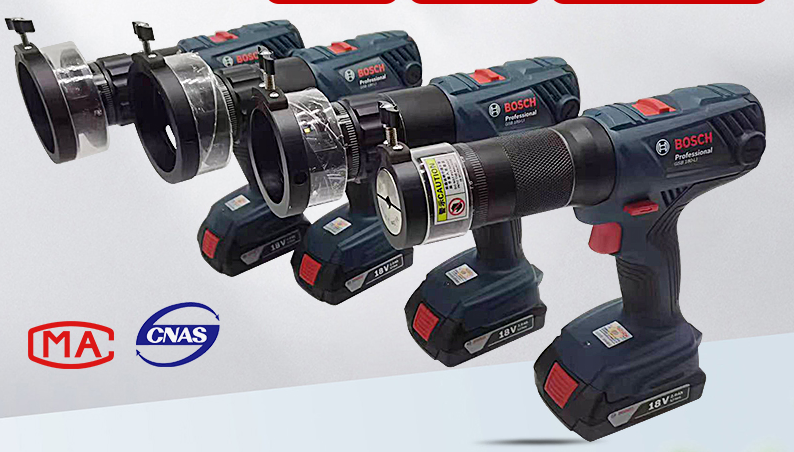

- Available in both DC rechargeable and AC plug-in motor versions.
Product Specifications

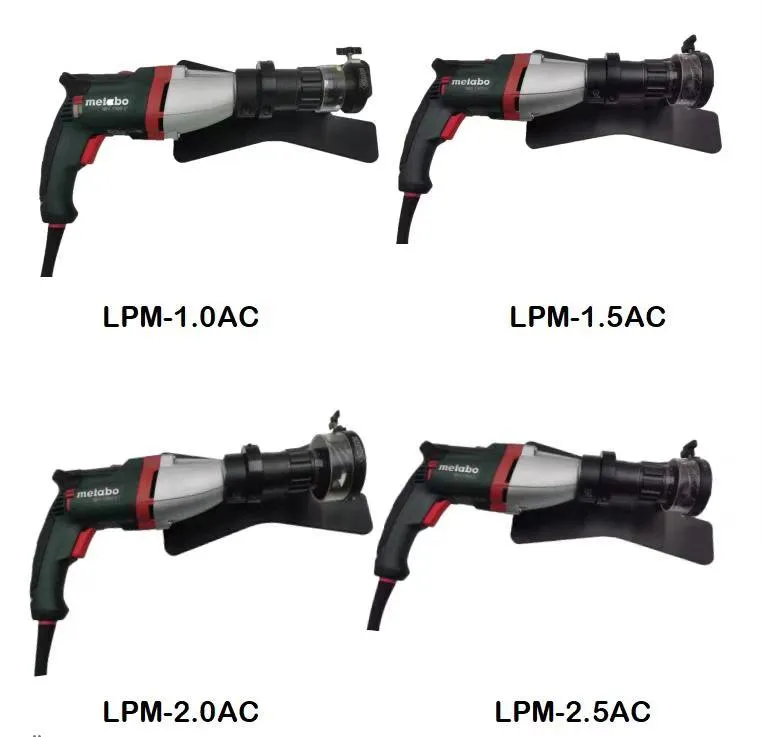

| Model | Processing Range (ID mm) | Wall Thickness (mm) | Packing Size (mm) | Motor Parameters | Weight (Kg) | Standard Fixture (mm) |
|---|---|---|---|---|---|---|
| LPM-1.0AC | 6-25.4 | ≤5 | 470*440*180 | 220V 1300W | 10 | 6.35/9.52/12.7/19.05/25.4 |
| LPM-1.5AC | 6-38.1 | ≤5 | 470*440*180 | 220V 1300W | 11 | 12.7/19.05/31.8/25.4/38.1 |
| LPM-2.0AC | 6-50.8 | ≤5 | 470*440*180 | 220V 1300W | 12 | 19.05/31.8/25.4/38.1/50.8 |
| LPM-2.5AC | 9-63.5 | ≤5 | 470*440*180 | 220V 1300W | 14 | 31.8/25.4/38.1/50.8/63.5 |
| LPM-3.5AC | 12.7-88.9 | ≤5 | 640*465*540 | 220V 1300W | 19 | 25.4/38.1/50.8/63.5/88.9 |
| LPM-4.5AC | 19-114 | ≤5 | 640*465*540 | 220V 1300W | 28 | 50.8/63.5/76.3/101.6/114.3 |

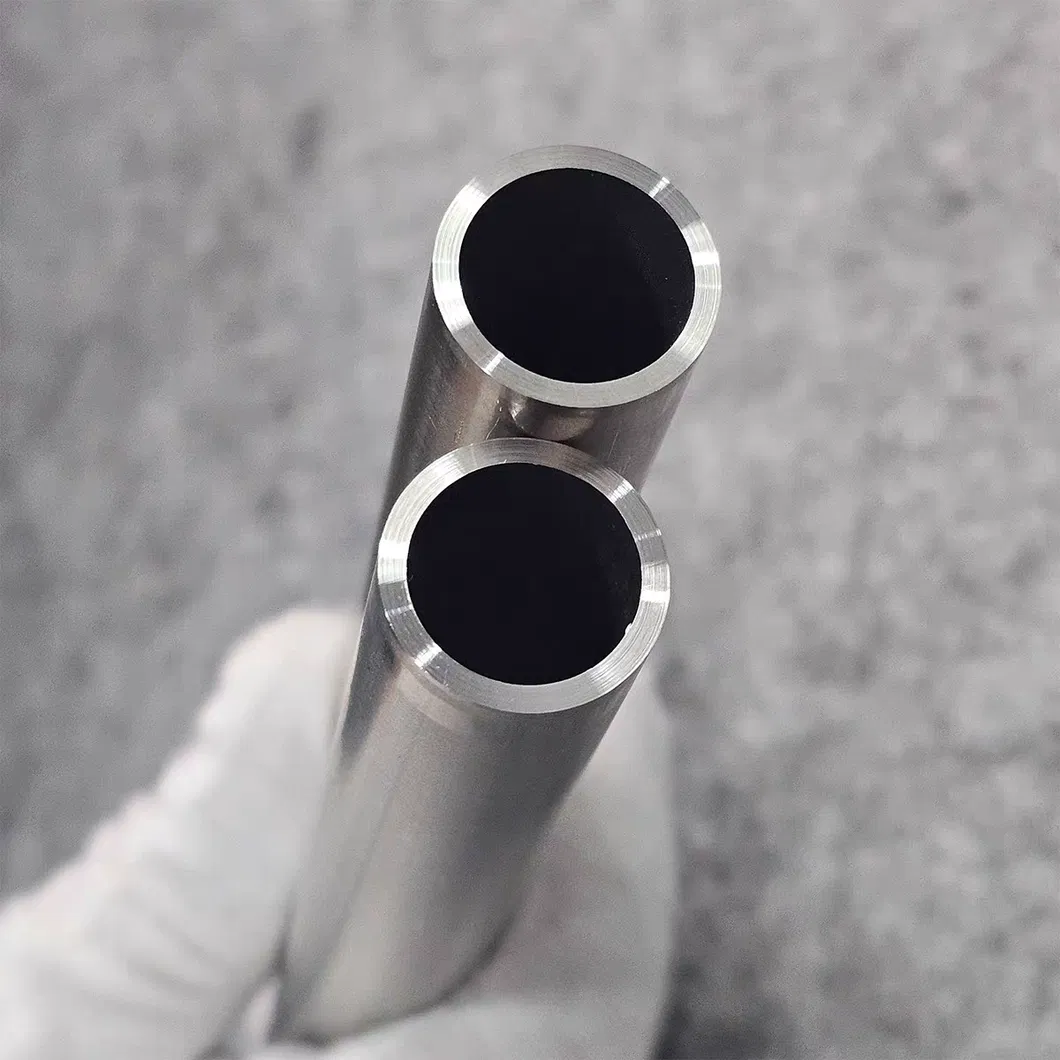

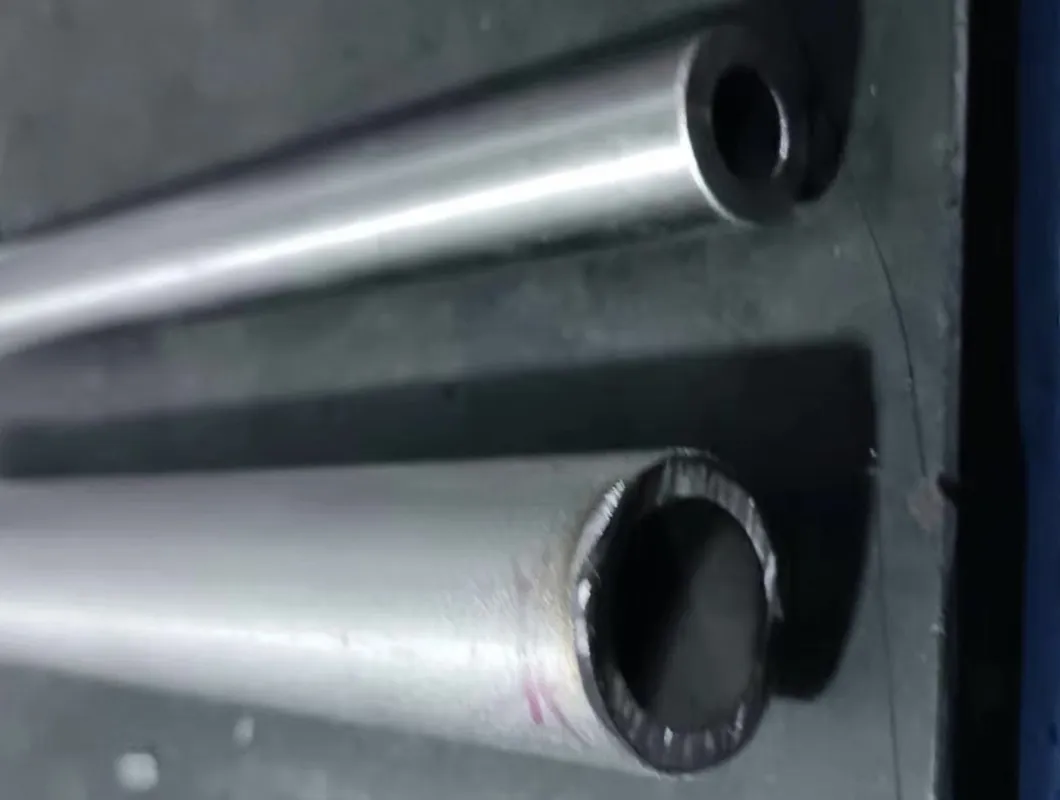

Customer Photos & Effects
Installation Procedure

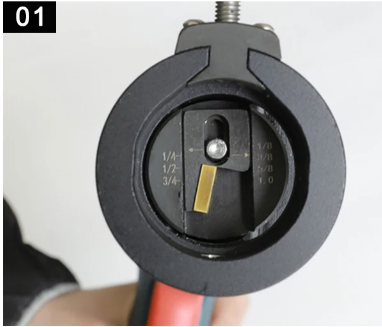

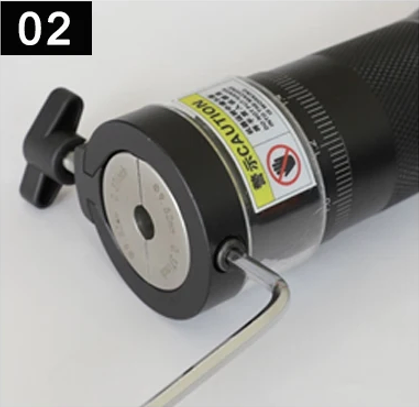

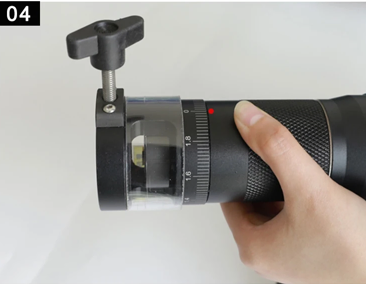

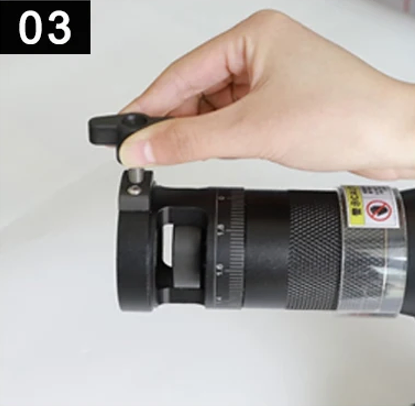

01: Loosen the screw to move the blade position and align the marking line. 02: Tighten the screw with a hexagonal wrench. 03: Rotate the handle to clamp the pipe. 04: Rotate the feed part clockwise for precision cutting (2mm per rotation).

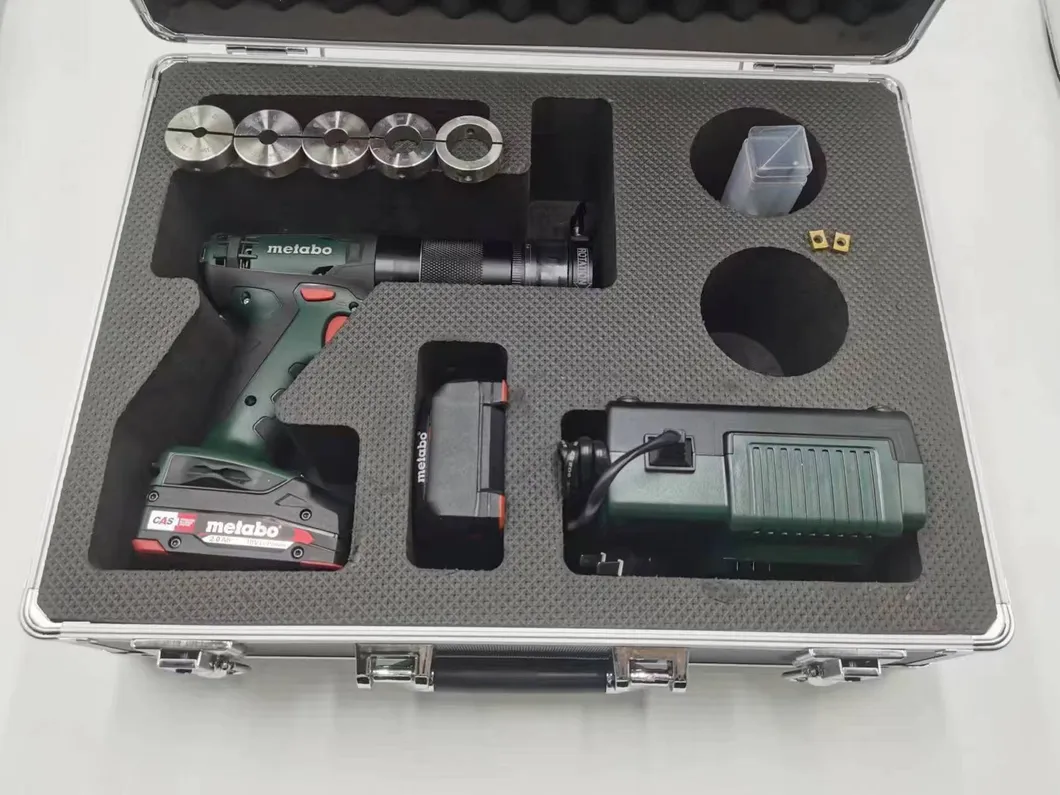

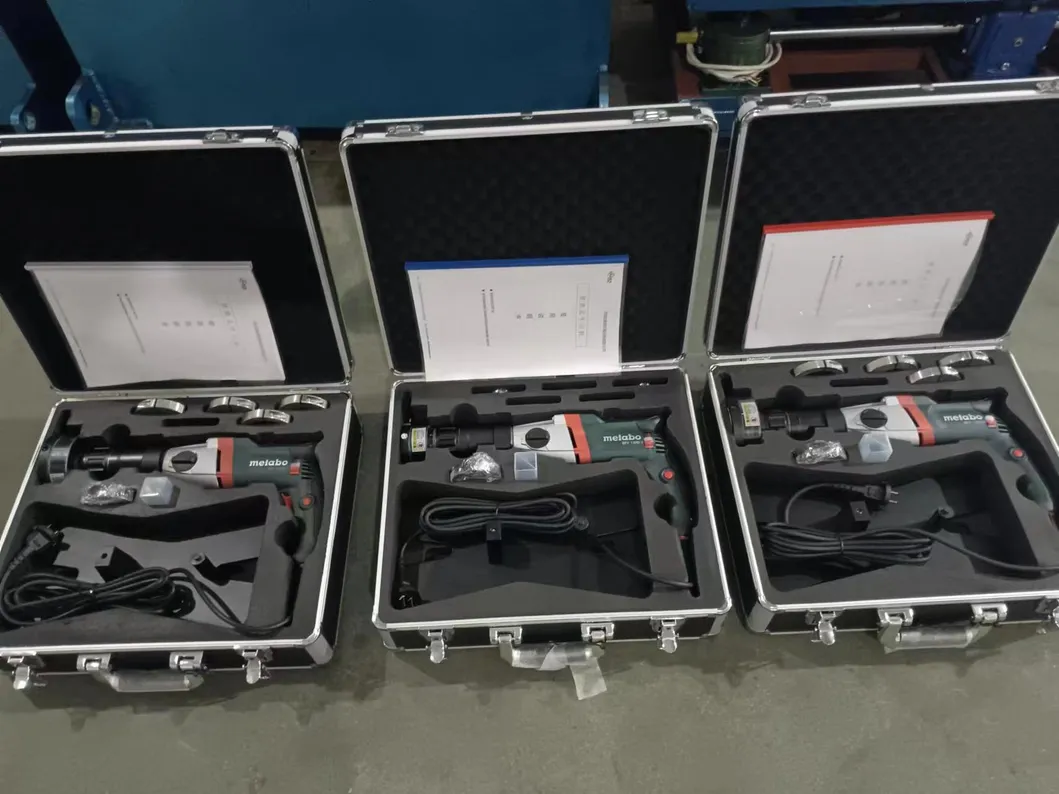

Product Packaging & Certifications
Frequently Asked Questions
Q1: What is the device driver configuration?
A1: You can choose between a plug-in AC motor or a rechargeable DC motor version.
Q2: Is it easy to operate and install?
A2: Yes, the operation and installation are simple. We provide technical support for any setup concerns.
Q3: What are the shipping methods?
A3: We offer both sea and air freight options. Shipping costs are calculated based on the total weight.
Q4: How many fixtures are included per unit?
A4: Models under 2.5 inches include 5 fixtures. Models over 3 inches include 1 fixture, with options for additional custom fixtures.
Q5: What materials can this machine process?
A5: It is specifically designed for thin-walled stainless steel pipes used in high-purity industries.
Q6: Does the machine leave burrs after cutting?
A6: No, the machine ensures a flat, burr-free end surface that is perfectly vertical to the pipe axis.
