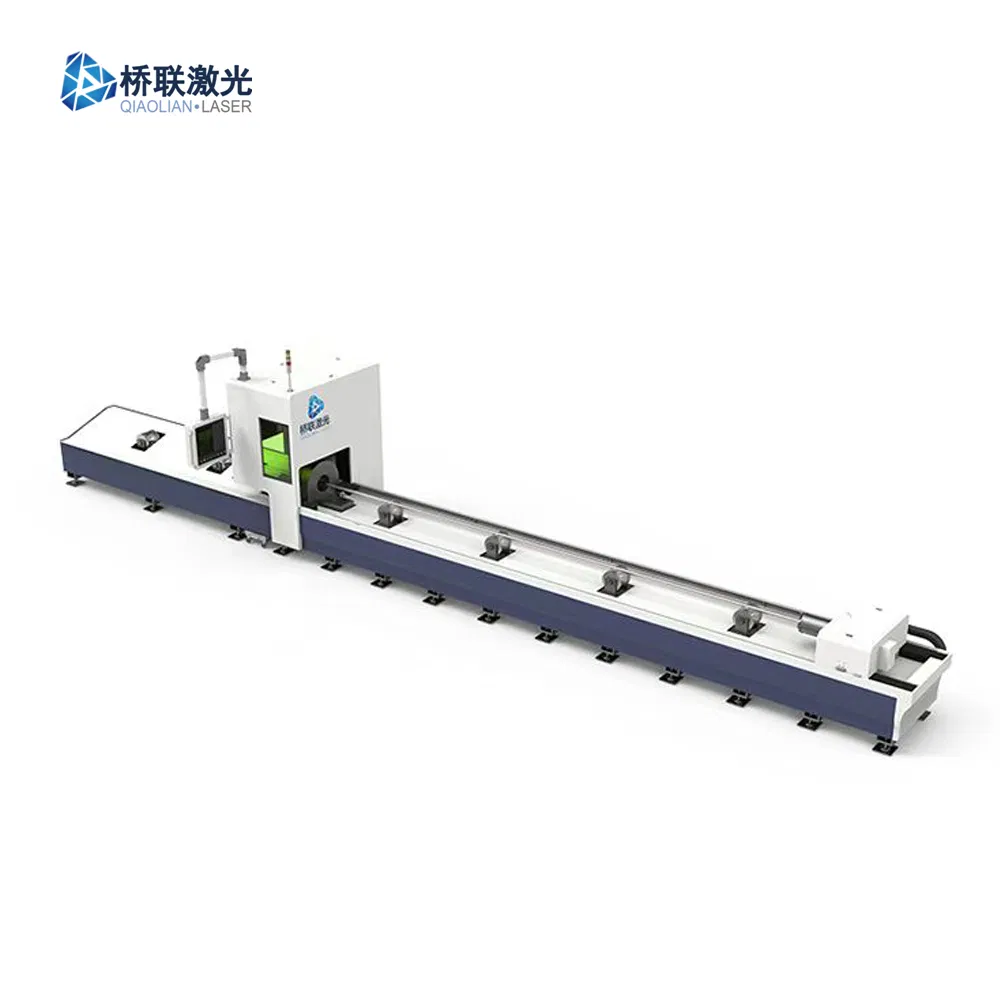

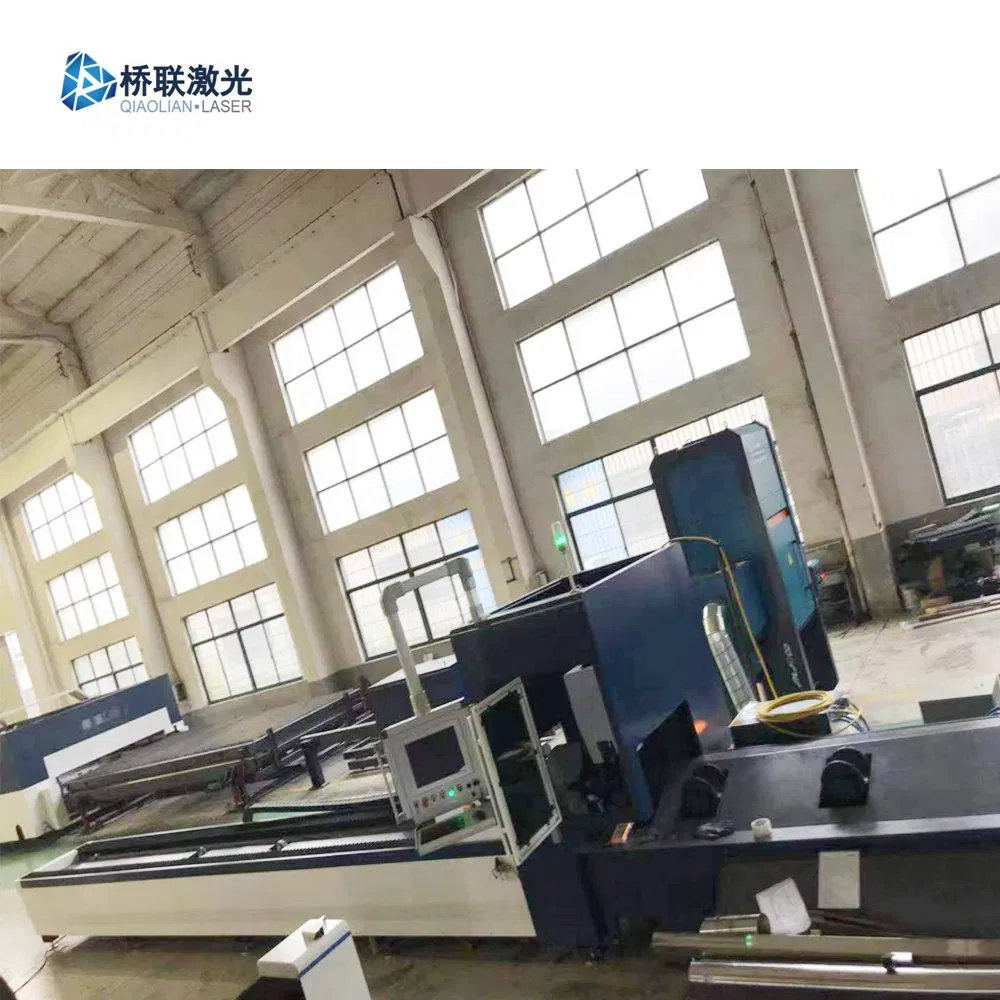

Industrial CNC Tube Laser Machine Cutting Tube for Steel Stainless Steel

1 / 5

Industrial CNC Tube Laser Machine Cutting Tube for Steel Stainless Steel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Info

Application

Home Appliance, Aerospace Industry, Automotive Industry, Construction Machinery, etc.

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Round Tube, Square Tube, Angle, H Beam, C Type Steel

Structure Type

Tube Laser Cutting Machine

Laser Classification

Fiber Laser

Controller

Fscut5000 Ethercat Bus System

Laser Head

Intelligent Auto Focus

Linear Guide

German Rexroth/INA

Production Capacity

2000 sets Per Year

🚀

Industrial CNC Tube Laser Machine

Core Features & Capabilities

3-chuck Clamping Technology

Real 0 tailing without tube length restriction

Cut 12000mm entire tube at most

Maximum pipe diameter 450mm

Maximize the weight of single tube

Automatic uploading & 3D cutting optional

Key Advantages

1. Multi-point Supporting for Heavy Tubes: Tubes are clamped by three chucks concurrently. Any deformation is automatically corrected to ensure high precision.

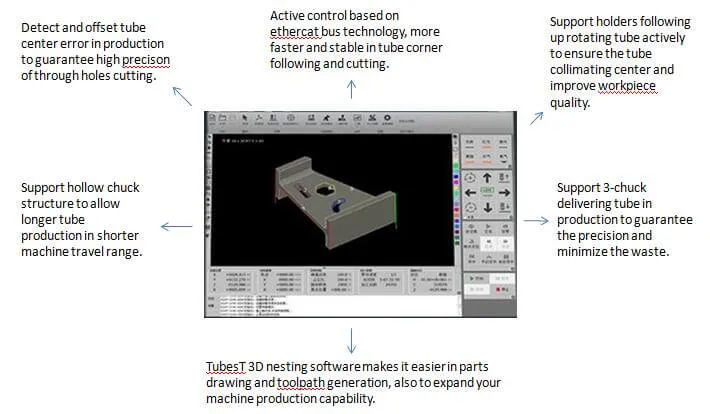

2. EtherCAT Bus System: FSCUT5000 series designed for fiber laser pipe cutting. Works with TubesT 3D nesting software for maximum efficiency.

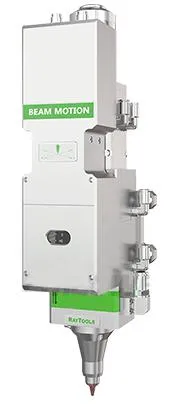

3. Auto Focus Laser Cutting Head: Equipped with slender TRA components and nozzles for complex conditions. Built-in motor drive realizes continuous focusing and rapid perforation.

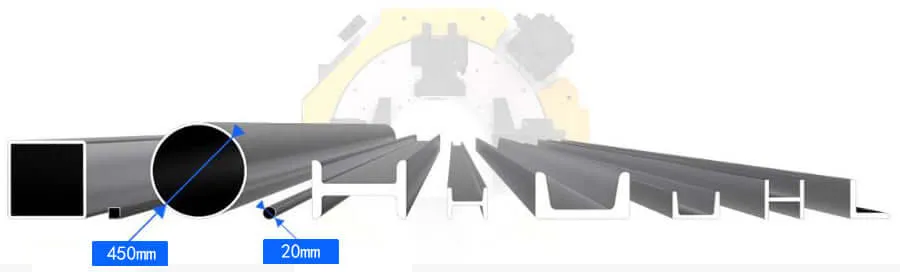

4. Performance in Tube Cutting: Capable of cutting profiles like channel, angle, and I-shaped steel besides standard round and square tubes.

5. Imported Parts, Precision Guaranteed

Dual high-powered servo motors (German)

Transmission parts from Japan

High-precision racks and rails

6. Quality Control System: Rigorous assembly inspection using laser interferometers and collimators to ensure every unit meets standard factory quality.

📊

Technical Parameters

Model	Power	Max.Dia (mm)	Tube Length (mm)	Accuracy
JCT3612	1000W-6000W	120	3000 - 12000	±0.05mm
JCT3622		220		±0.05mm
JCT3635		350		±0.05mm
JCT3645		450		±0.05mm

*The above data are for reference only, subject to the actual product!

📍

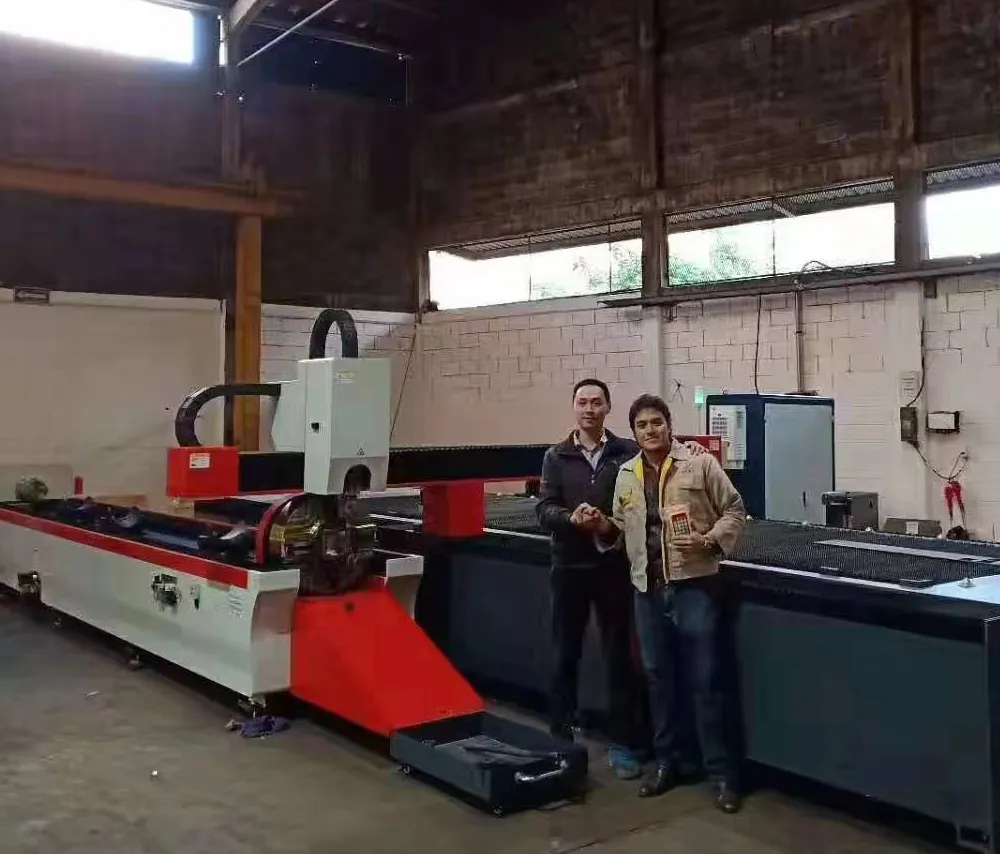

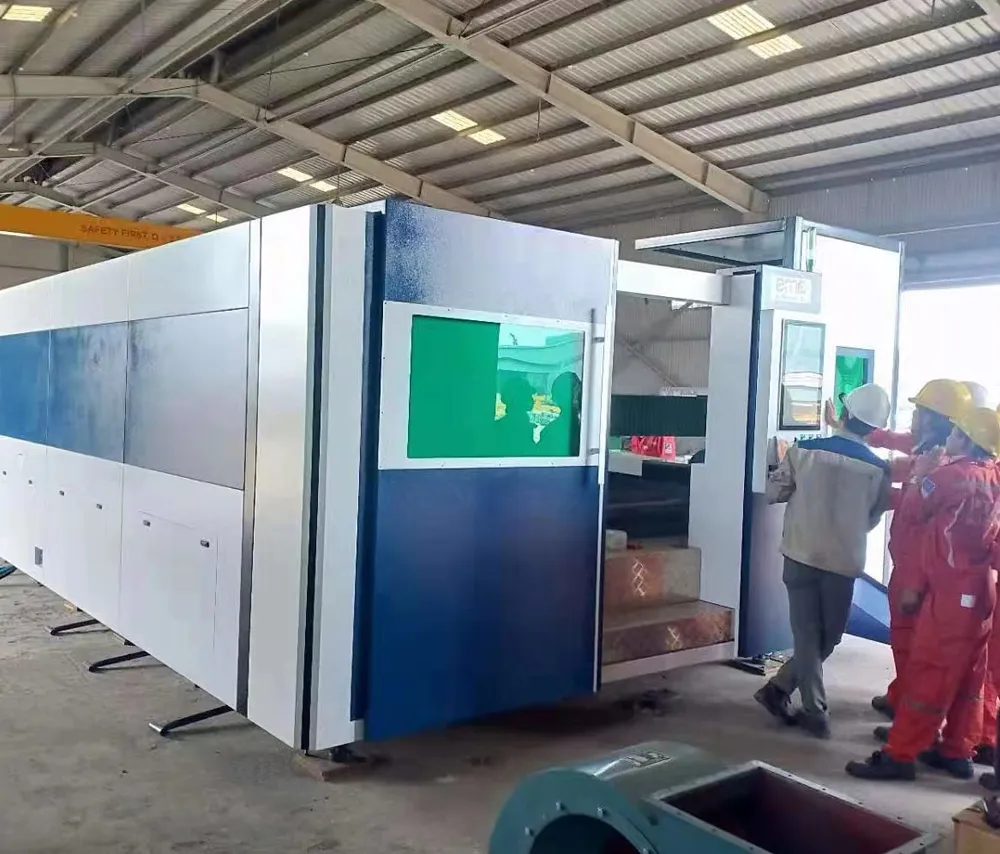

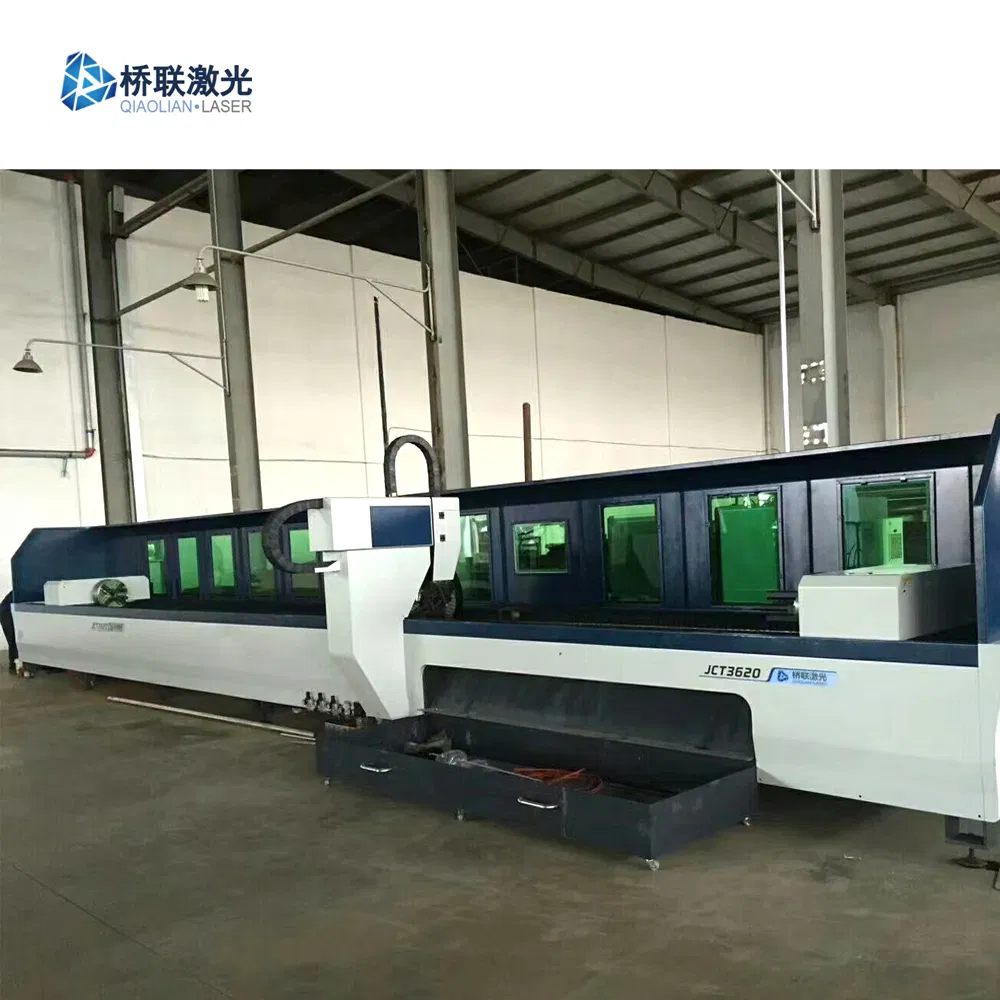

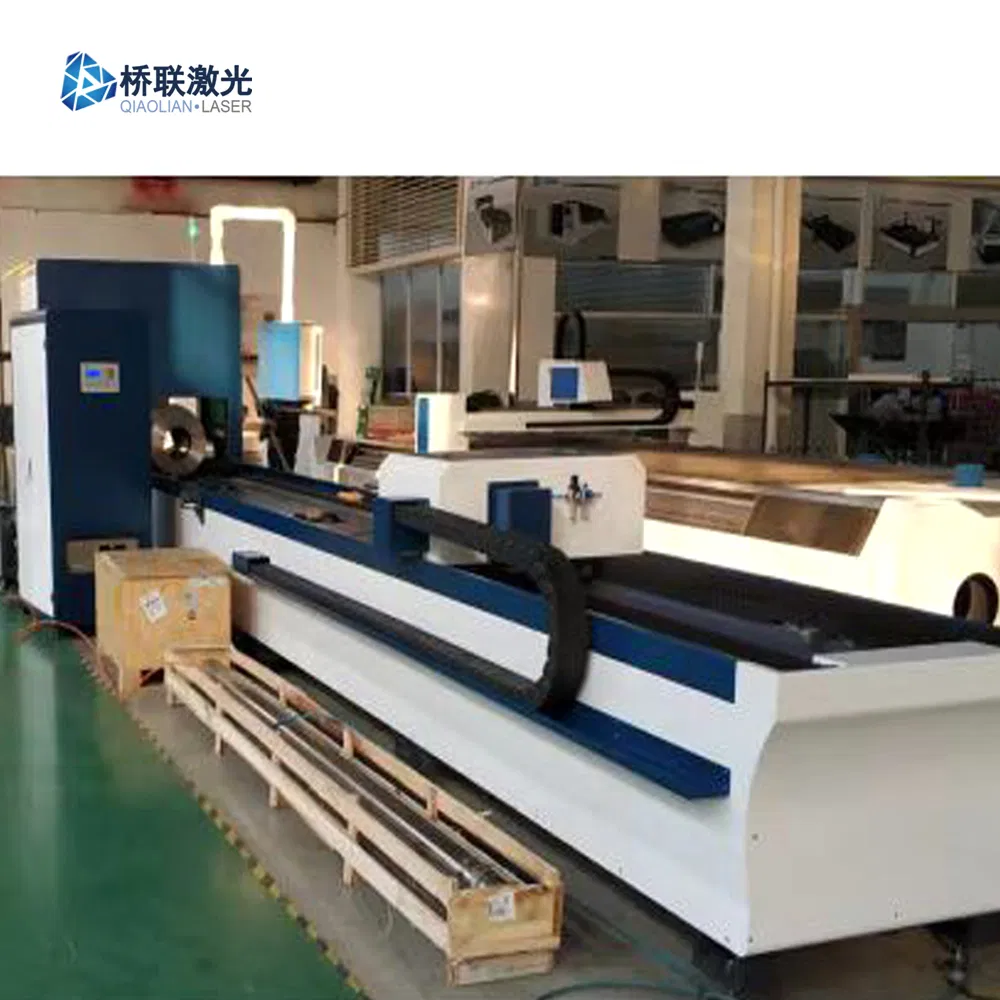

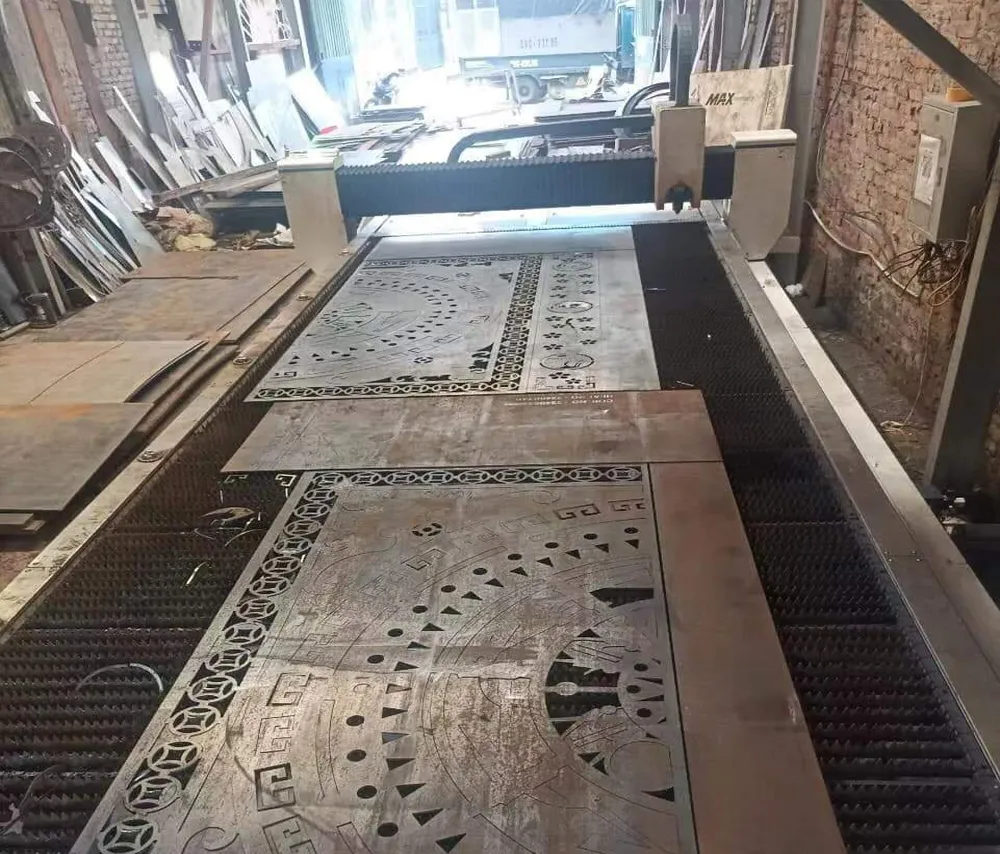

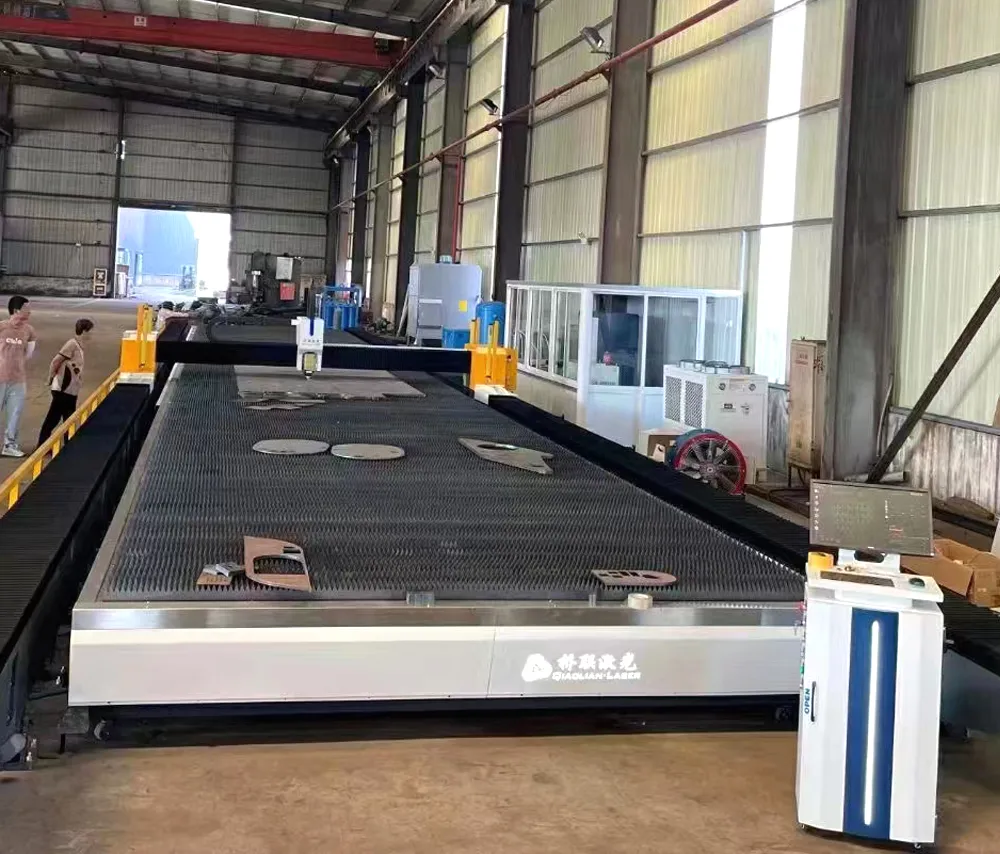

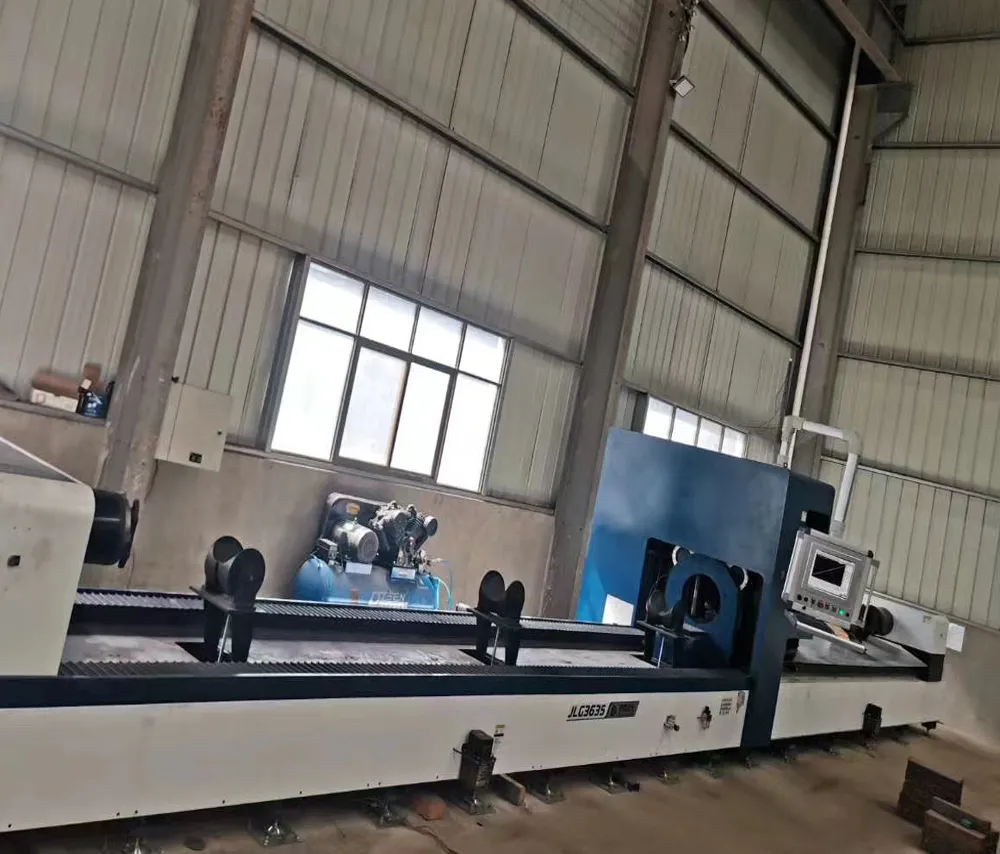

Customer Site & Samples

Cutting Samples

❓

Frequently Asked Questions

What materials can this tube laser machine cut?

The machine is capable of cutting round tubes, square tubes, angle steel, H-beams, and C-type steel made of stainless steel, carbon steel, and other alloys.

What is the maximum tube length supported?

The machine supports various tube lengths including 6000mm, 9000mm, and up to a maximum of 12000mm.

How does the 3-chuck clamping technology benefit the process?

The 3-chuck system provides multi-point support, allowing for "real 0 tailing" (minimum waste) and automatically correcting tube deformation for higher precision.

Which control system does the machine use?

It uses the FSCUT5000 EtherCAT bus system, which is specifically designed for high-efficiency fiber laser pipe cutting.

Is the laser head auto-focusing?

Yes, it features an intelligent auto-focus laser cutting head with a built-in motor drive for rapid perforation and stable continuous cutting.

What is the positioning accuracy of the machine?

The X/Y-axis positioning accuracy is ±0.05mm, with a repositioning accuracy of ±0.03mm.
