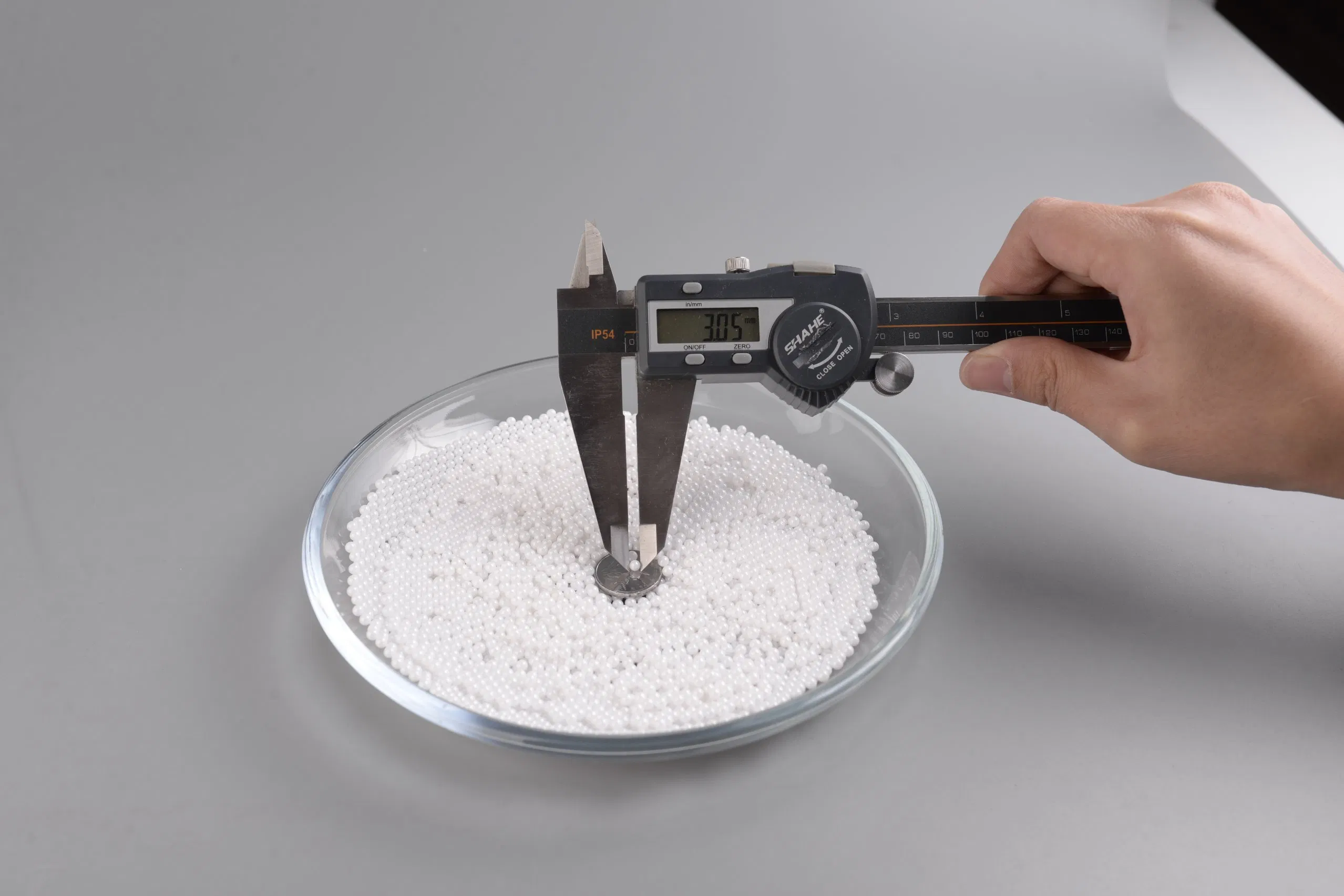

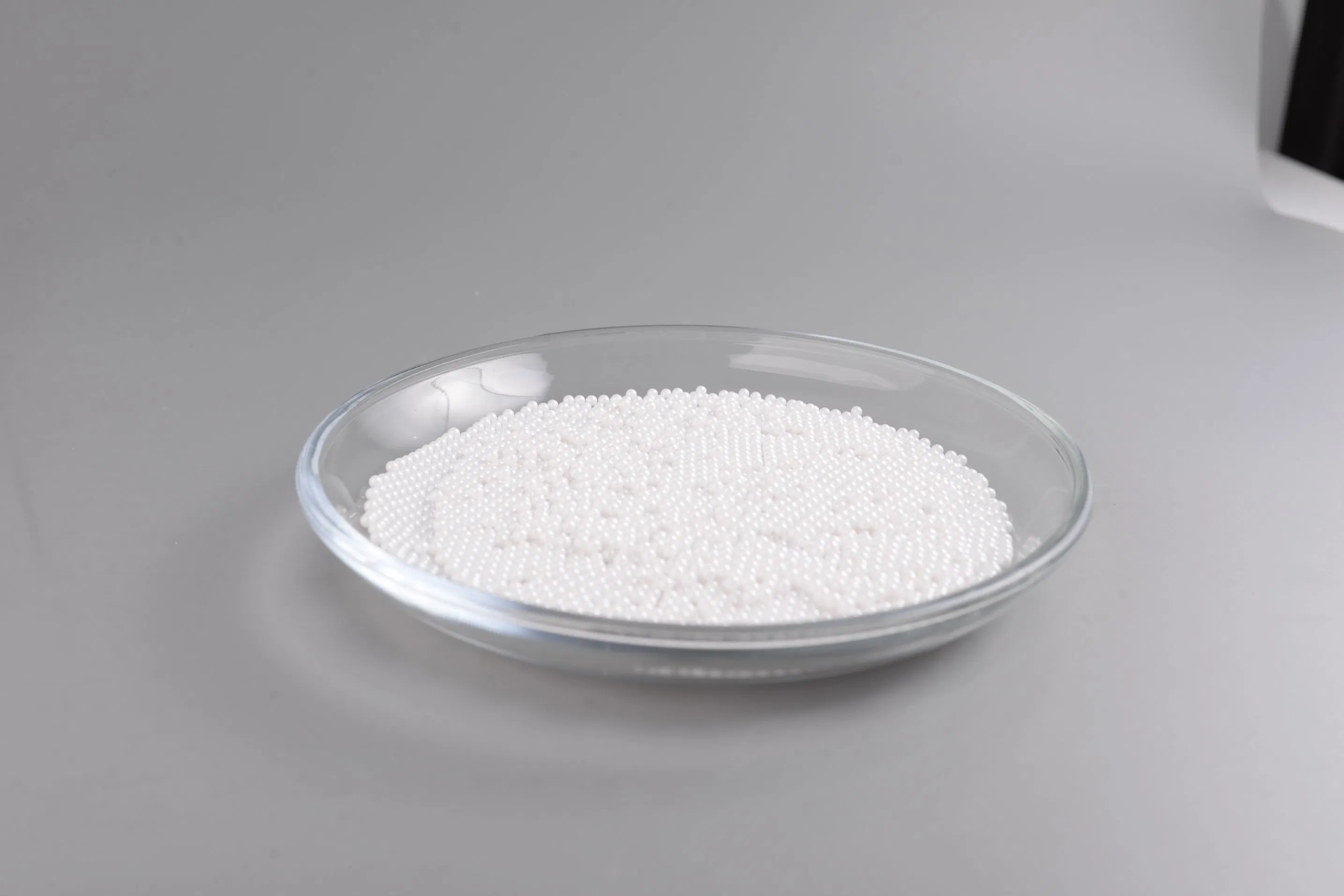

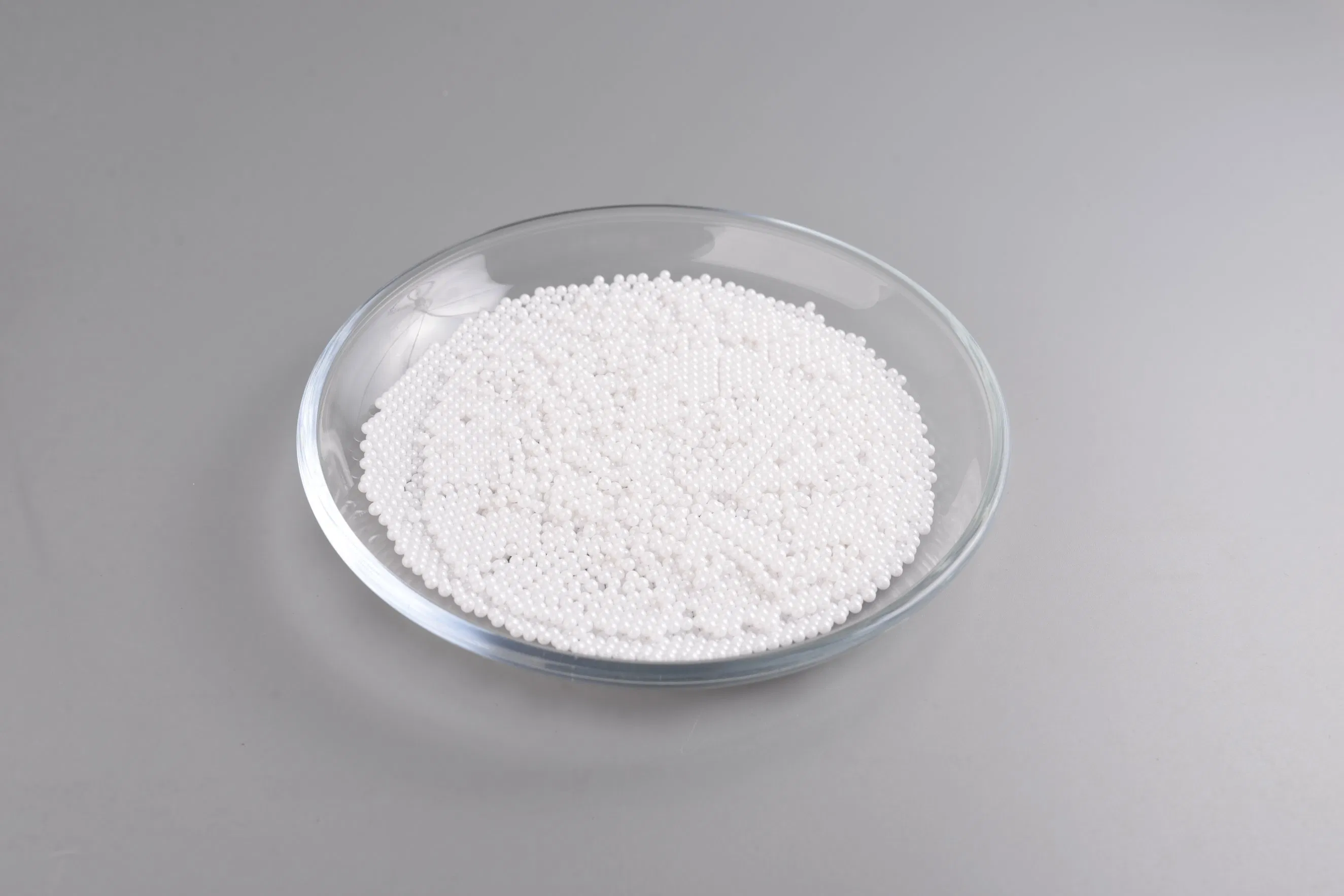

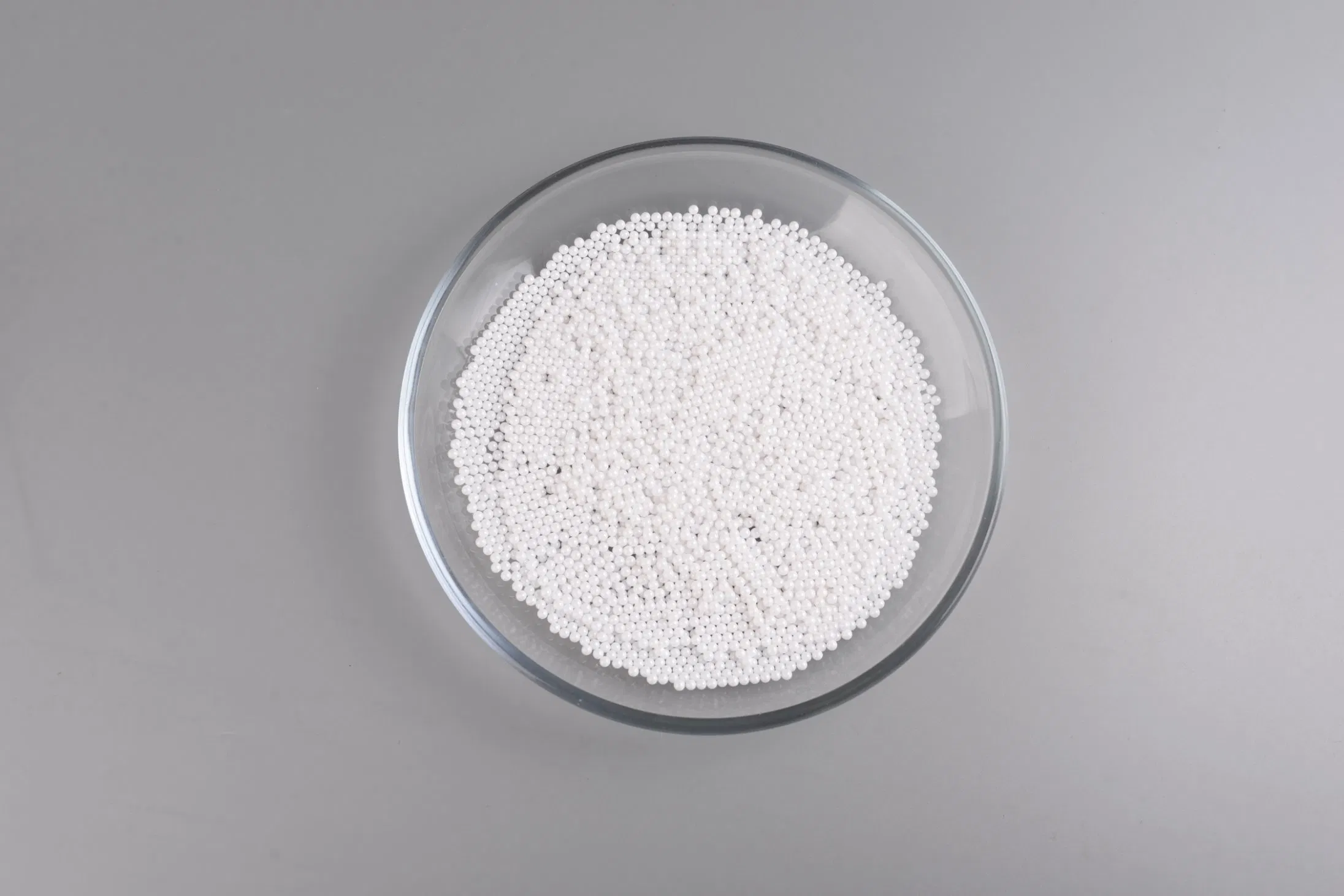

Application of Yttrium Stabilized Zirconia Beads with High Temperature Resistance and Stability
Product Description
💎
Basic Information
| Material | Zirconia Ceramic (95% Beads) |
| Purity | ZrO2: ≥94.6%, Y2O3: ≥5.2% |
| Size Range | 0.08mm - 50mm |
| Specific Gravity | ≥6.02 g/cm³ |
| Vickers Hardness | >1250 Kgf/mm² |
| Sphericity | 98% |
| Features | High Toughness, Faster Grinding, Corrosion Resistance |
⚙️
Product Description
High-performance yttria-stabilized zirconia grinding balls deliver exceptional wear resistance, superior density, and minimal contamination for precision milling. Engineered with advanced stabilization technology, they provide unmatched hardness and chemical stability across minerals, pigments, and ceramics processing. Featuring ultra-low wear rates for extended lifespan and reduced maintenance, these customizable balls ensure uniform material grinding/dispersion in pharmaceutical, chemical, and industrial applications.
📊
Technical Parameters
| Items | Specification |
|---|---|
| Bulk Density | ≥3.7 g/cm³ |
| Fracture Toughness | ≥8 MPam1/2 |
| Bending Strength | 900 MPa |
| Crushing Strength | ≤5 kN (Φ0.8-1.0mm) |
| Self Consumption | ≤20 ppm/h |
| Thermal Conductivity | 3 W/m·K |
📸
Detailed Display
🚀
Industry Applications
✔ Painting, Ink, Coating, and Ceramic Inks
✔ Refractory materials, Magnetic materials, and Pigments
✔ Cosmetics, Medicine, and Agrochemicals
✔ Mining (Gold, Silver, Nickel, Zinc, Lead, etc.)
Compatible Equipment: Horizontal/Vertical Bead Mills, Attrition Mills, High-Speed Sand Mills, Basket Mills, Planetary Mills, and Ball Mills.
🌟
Our Advantages
⭐ 14 years' experience with CE, ISO 9001 and SGS certificates.
⭐ Wide range of ball mill jars and grinding media available.
⭐ Specialized production for Retsch and Fritsch compatible milling jars.
⭐ Fast delivery within 3-7 working days from stock.
📦
Package & Shipping
🔗
Related Products
❓
Frequently Asked Questions
Q1: What sizes of zirconia beads are available?
A: Our standard sizes range from 0.1mm to 100mm. We can also provide customized sizes upon request.
Q2: What are your standard delivery terms?
A: We generally operate under FOB, CFR, and CIF terms.
Q3: Can I request a small sample before placing a full order?
A: Yes, we can offer samples for testing prior to production. Please note that customers are responsible for the courier/shipping costs.
Q4: How long is the typical production and delivery time?
A: Generally, it takes between 5 to 30 days after receiving advance payment. In-stock items can be delivered within 3-7 working days.
Q5: What are your accepted payment terms?
A: We accept T/T (30% deposit, 70% against B/L copy) or 100% L/C at sight. Product photos are provided before final payment.
Q6: Do you provide support for specific mill brands?
A: Yes, we produce high-quality grinding jars and media compatible with Retsch and Fritsch equipment.
