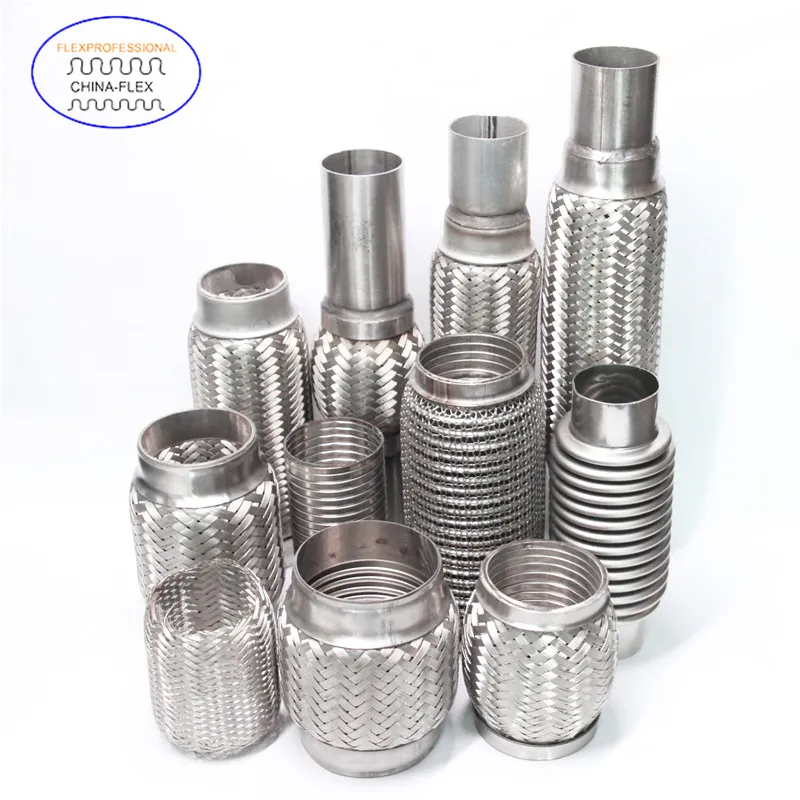

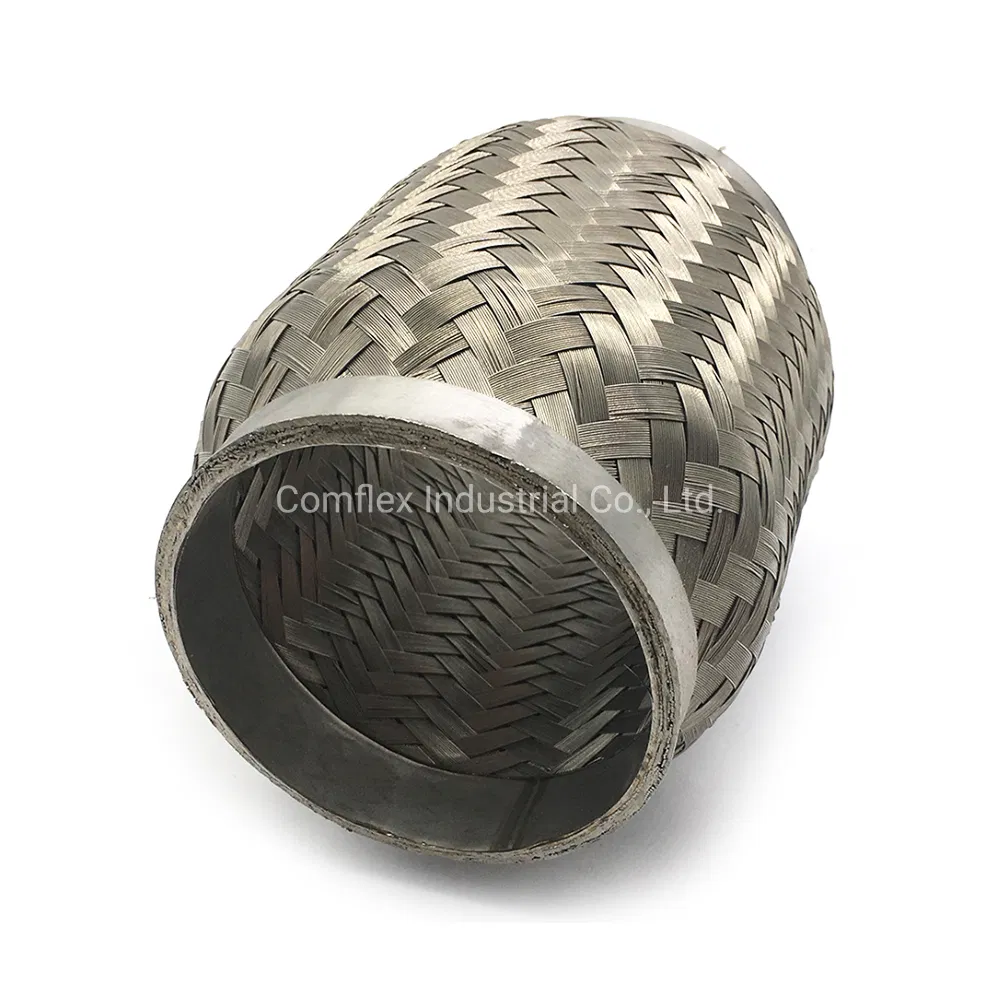

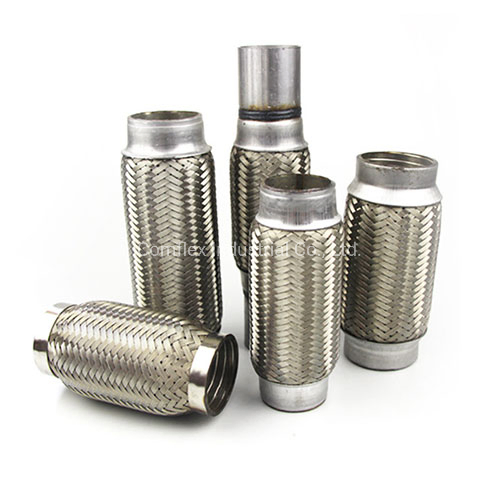

High Quality Stainless Steel SS201 SS304 Car Flexible Exhaust Bellow Corrugated Pipe Connector

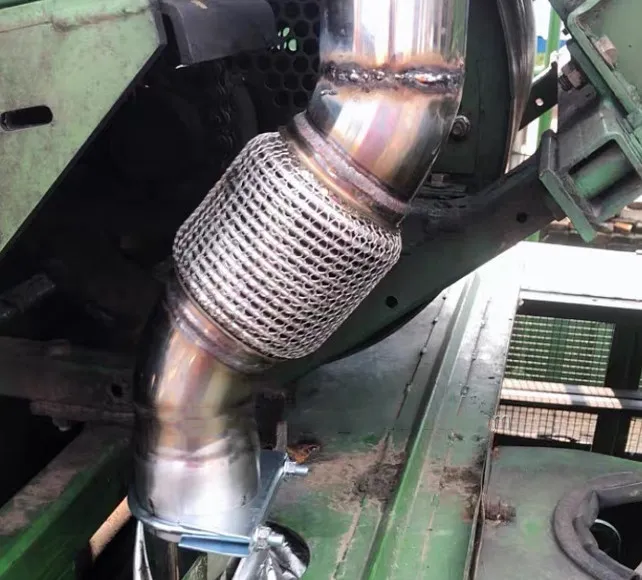

Application: Installed in the exhaust pipe between the engine exhaust branch pipe and the muffler, which makes the connection of the entire exhaust system flexible and plays a role in reducing noise. It is easy to install and extends the life of the exhaust noise reduction system.

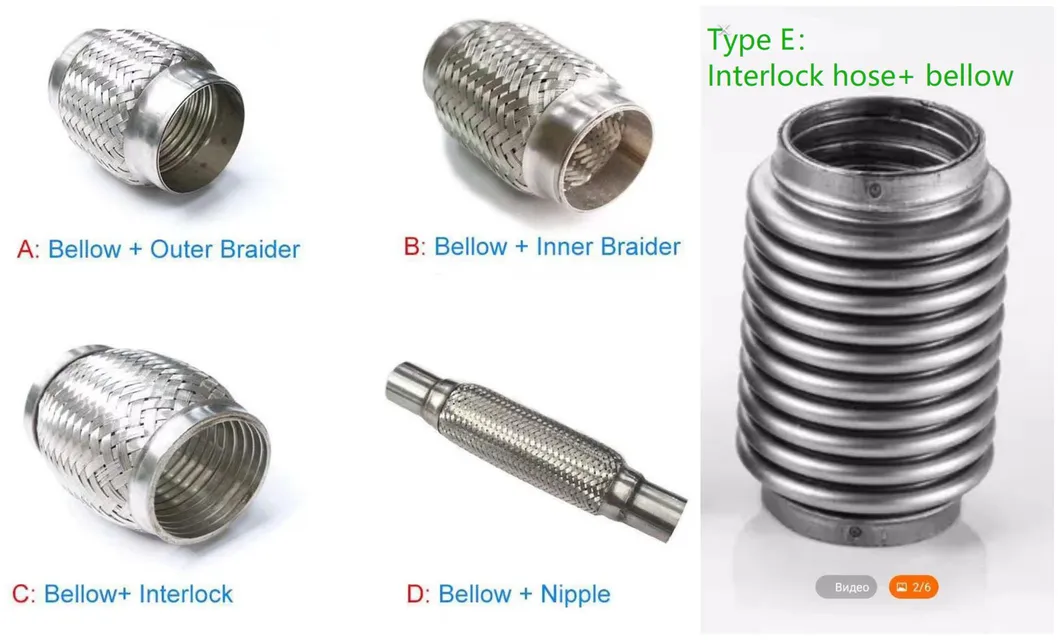

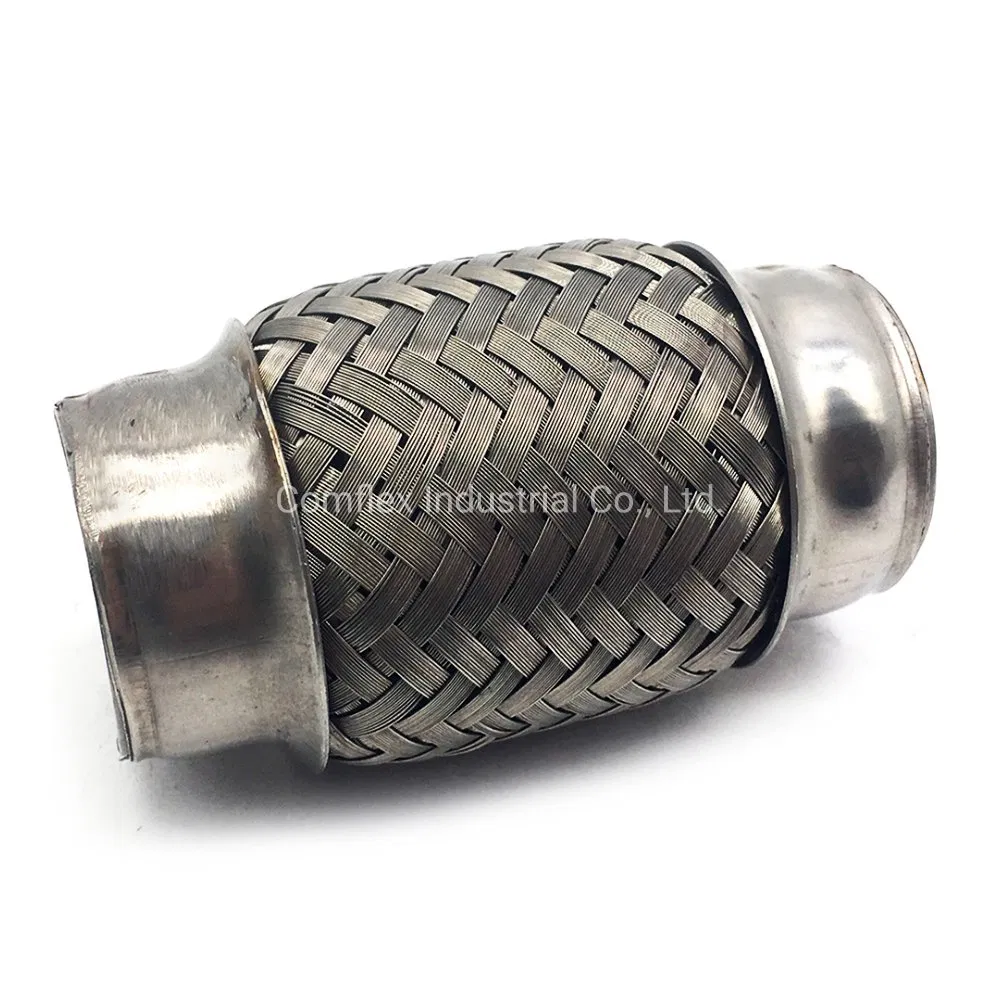

Mainly used for light trucks, small passenger cars, and buses. The structure features a double-layer corrugated pipe covered with a steel wire mesh sleeve.

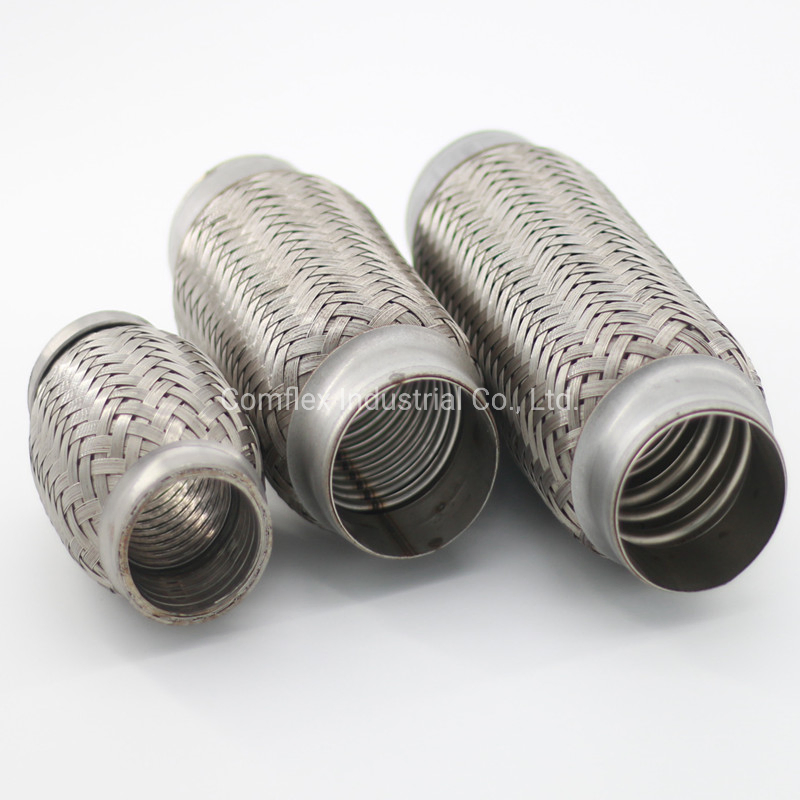

| Inside Diameter (I.D) | Overall Length (O/L) | Inside Diameter (I.D) | Overall Length (O/L) |
|---|---|---|---|
| 45mm (1-3/4") | 102mm / 152mm / 203mm | 43mm | 120mm / 165mm / 180mm |
| 51mm (2") | 102mm / 152mm / 203mm | 50mm | 120mm / 165mm |
| 57.2mm (2-1/4") | 152mm / 203mm / 254mm | 54.5mm | 120mm / 150mm / 180mm |
| 63.5mm (2-1/2") | 102mm / 152mm / 203mm | 60mm | 160mm / 200mm |
| 76.2mm (3") | 102mm / 152mm / 203mm | 65mm | 150mm / 200mm |
* Other sizes are available: ID32, ID36, ID38, ID40, ID46, ID48, ID115, ID125, etc.
