Stainless Steel Woven Decorative Cable Rod Metal Mesh Facade Cladding Architectural Wire Mesh for Room Space Divider Exterior Facade Order From China Factory
Product Description
📊
Basic Information
Model NO.:wymetalmesh
Material Type:Stainless Steel Wire
Weave Technique:Twill Weave / Woven
Wire Diameter:0.4-3mm
Rod Diameter:0.5-3mm
Surface:Painting, Anodized, Polished
Capacity:10000m2/Day
Certification:ISO9001
🧱

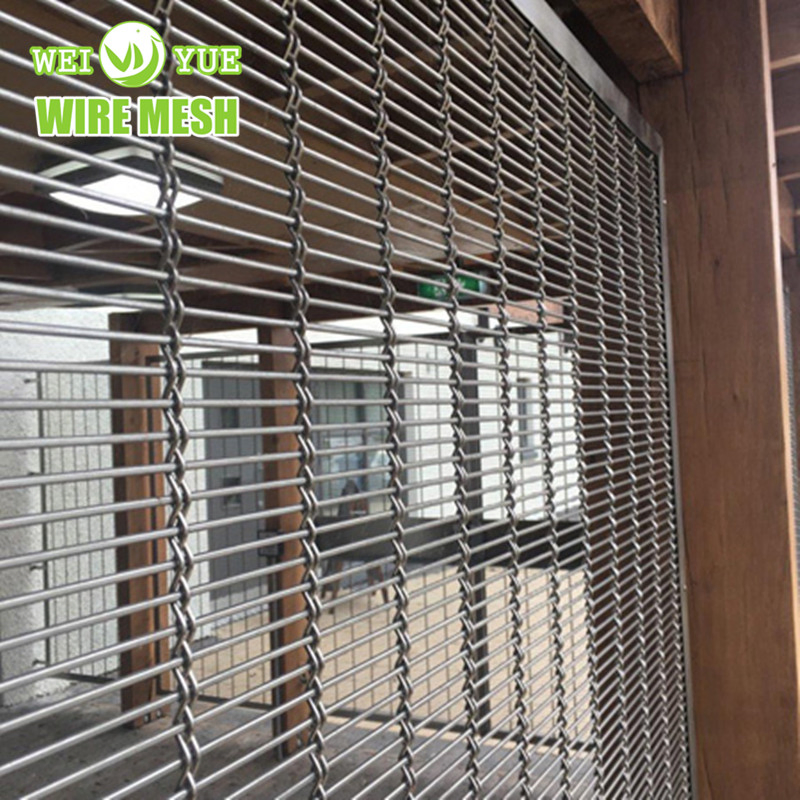

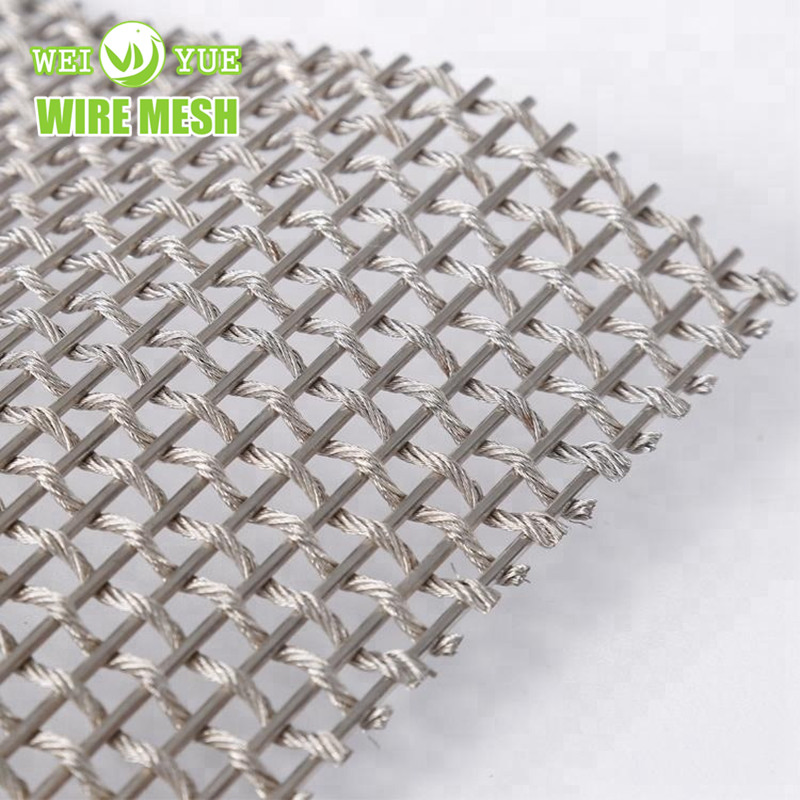

Cable-Rod Woven Mesh

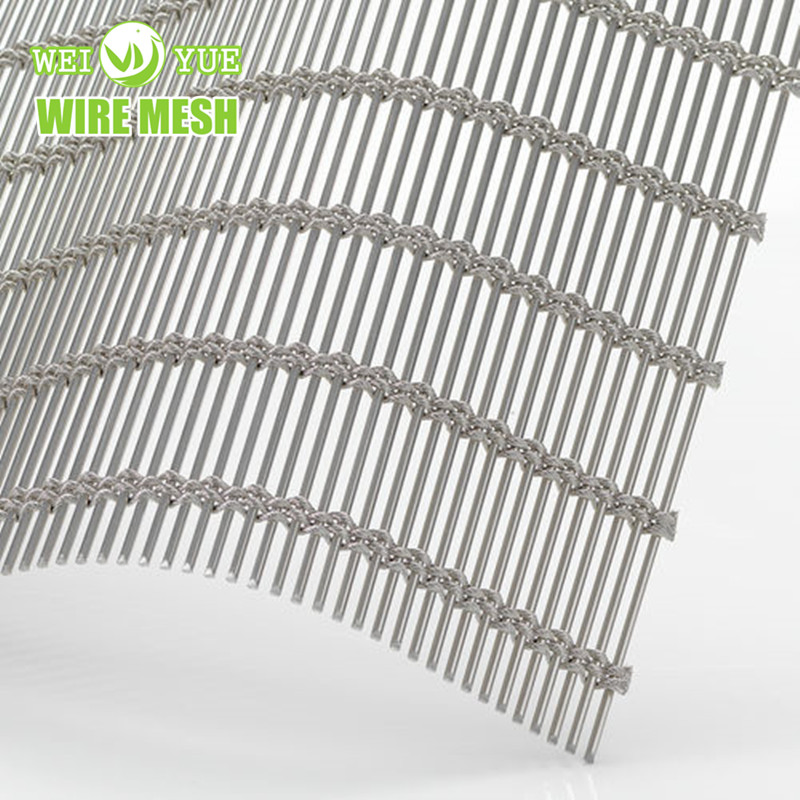

Cable-rod woven mesh is a specialized type of architectural mesh commonly used for building facades. Produced using stainless steel cables and rods, this mesh offers unique flexibility in the length direction, allowing for curved installations. With a maximum width of 6 meters, it is ideal for large-scale architectural projects. The stainless steel material ensures excellent corrosion resistance, high strength, and a long service life.
📋
Technical Specifications
| Material | Standard Fixing Detail | Standard Width |
|---|---|---|
| Stainless steel 304, 316, 316L, etc. | Inserted round bar with eye-bolts; clamping profile. | 2.5x1.25 m, 3x1 m, 4 m, 6 m. |

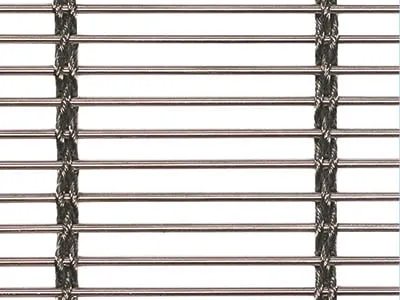

Type-01: Open Area 62%

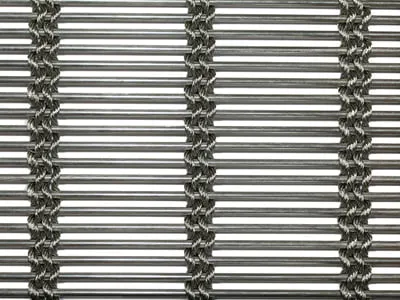

Type-02: Open Area 42%

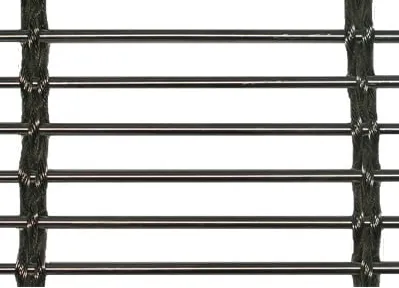

Type-03: Open Area 66%
| Design | Open Area | Cable Wire Dia. | Cable Pitch | Rod Dia. | Rod Pitch | Weight |
|---|---|---|---|---|---|---|
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 7.74kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.41kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 6.67kg/m2 |
| 11 | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 11.2kg/m2 |
🚀
TYPICAL APPLICATIONS

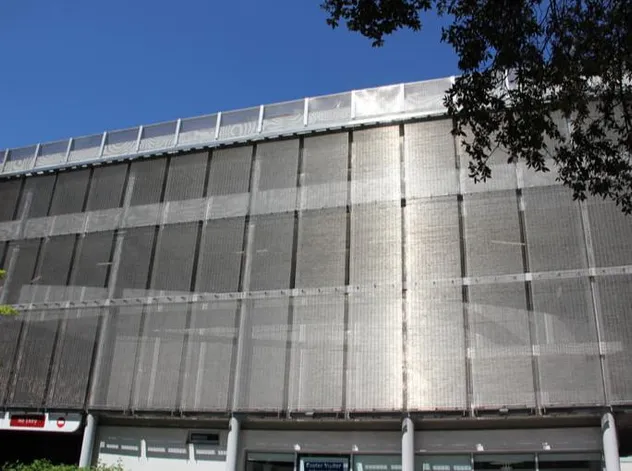

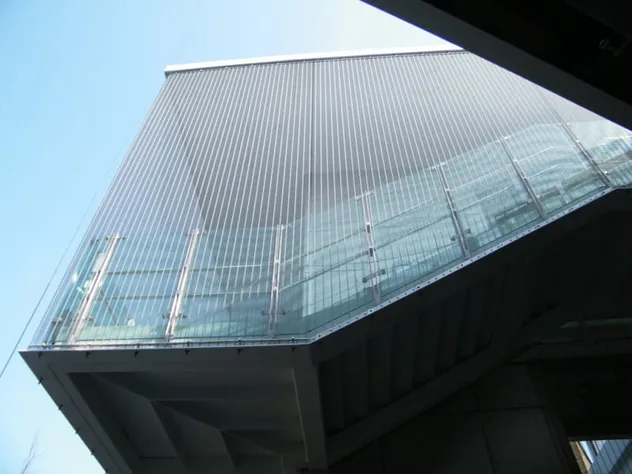

- Exterior Facades
- Sun Screening
- Security Panels

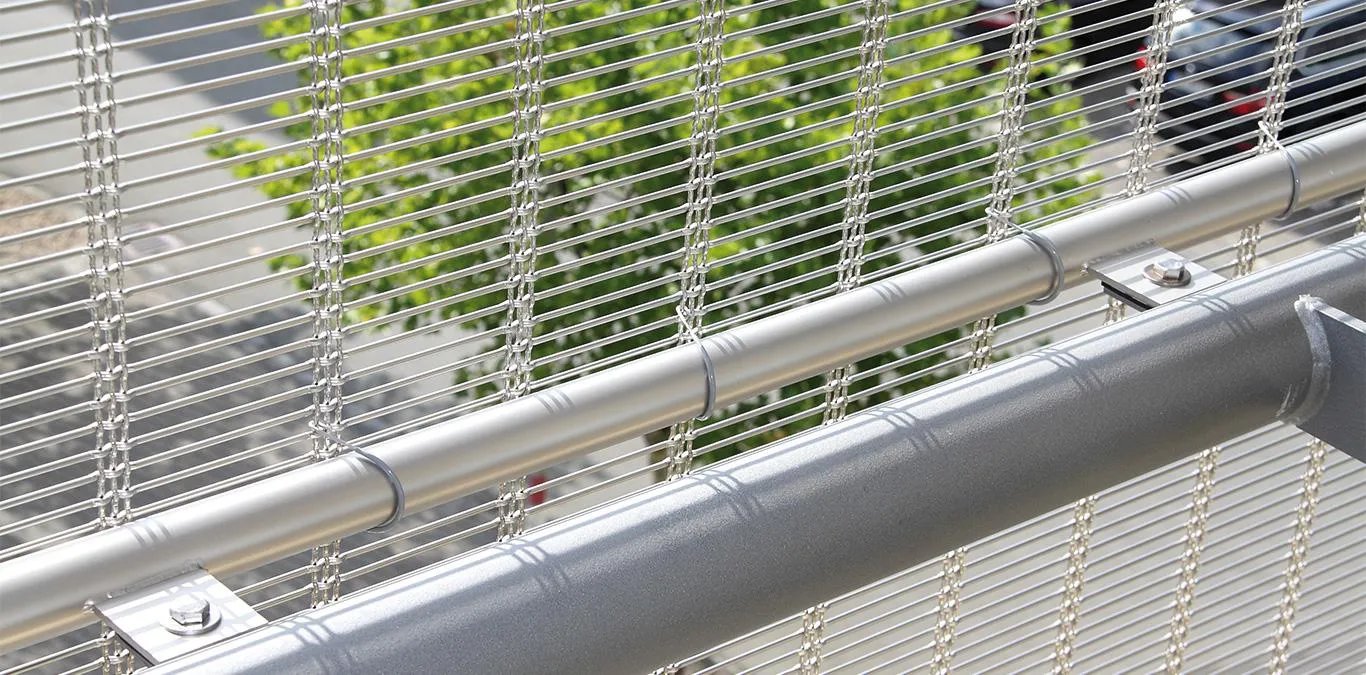

- Balustrading

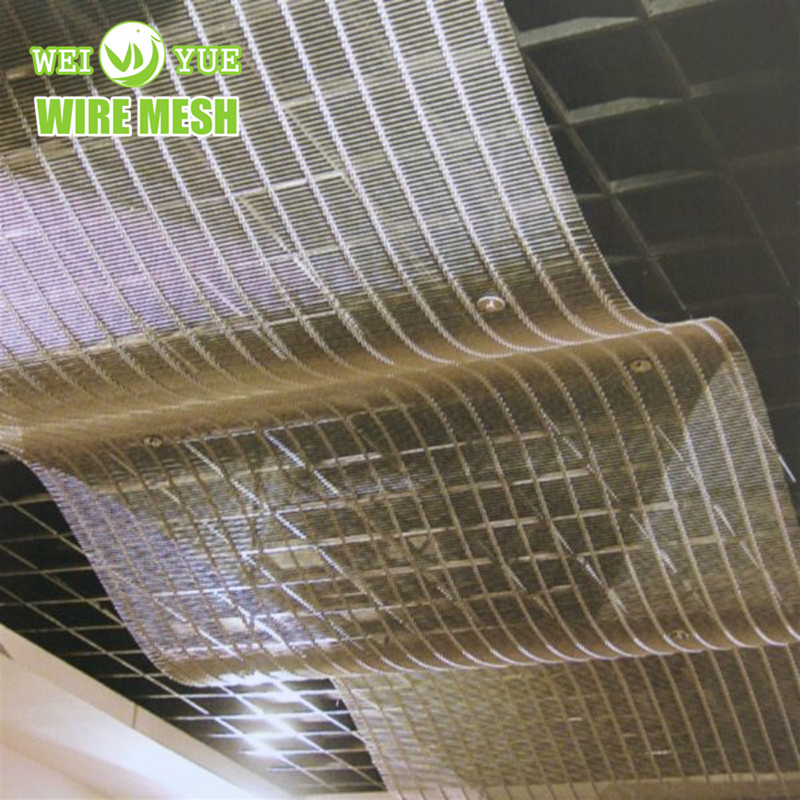

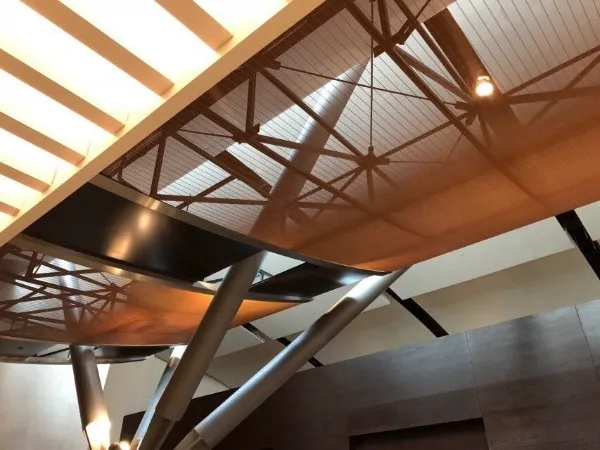

- Ceilings
- Stair/Lift Enclosures
- Interior Screening
- Fire Escape Cladding
- MSCP Cladding
- Feature Walls
❓
Frequently Asked Questions
What materials are used for the cable-rod mesh?
We primarily use high-quality Stainless Steel 304, 316, and 316L for superior durability and corrosion resistance.
What is the maximum width available?
The maximum width for our cable-rod woven mesh is 6 meters, making it suitable for large-scale architectural projects.
Is the mesh flexible enough for curved surfaces?
Yes, the mesh is flexible in the length direction, allowing it to be installed easily on curved building structures.
What surface treatments are available?
We offer several finishes including Polished, Anodized, and Painting in various colors like Golden, Black, and Natural Metallic.
How does this mesh help with energy consumption?
It acts as an effective sunshade, reducing interior temperatures and lowering the energy required for cooling buildings.
What is the production capacity per day?
Our facility has a high production capacity of up to 10,000 square meters per day.
