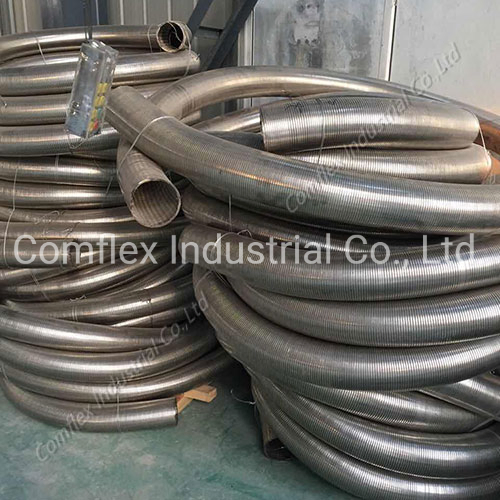

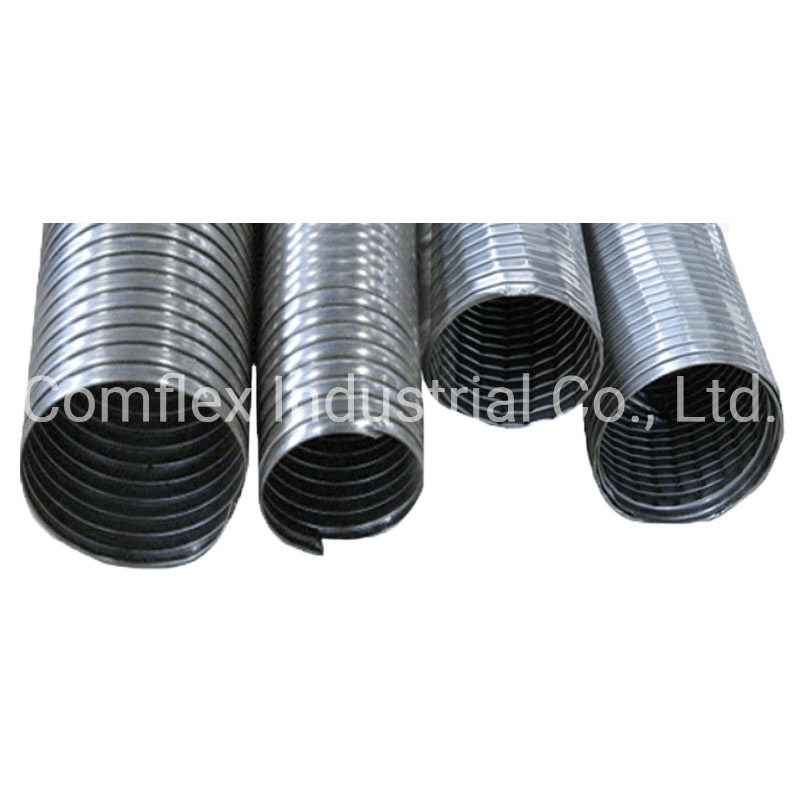

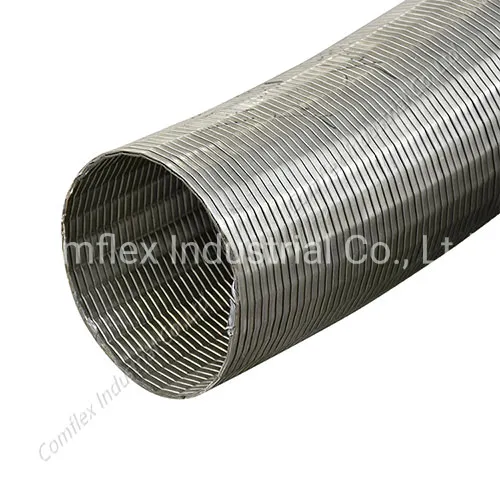

SS304 Galvanized Interlocked Flexible Engine Exhaust Metal Hose/Pipe/Tubing
Product Description
Basic Information
Model NO.
Comflex
Type
Exhaust Pipe
Body Material
Steel
Discharge Standard
Euro V
Certification
ISO9001, CE
Material
Stainless Steel
Application
Automotive Exhaust System
Capacity
1000 Meters Per Day
Product Description
Professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, squarelock and interlock hose/ conduit with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc.
💡 Key Manufacturing Ranges:
- Square lock hose and machinery: ID6-ID103
- Interlock hose and machinery: ID3-ID350mm
- Annular and corrugated metal hose: ID8 till ID600
Product Parameters

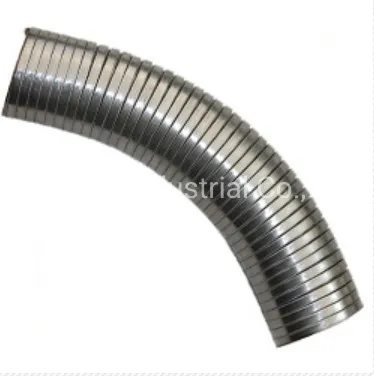

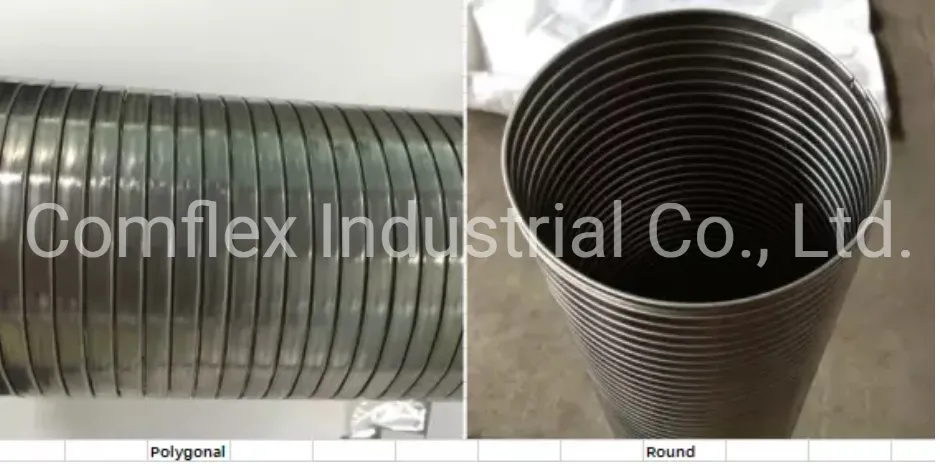

Structure
Polygonal/Round Type
Strip Thickness
0.25-0.8mm
Strip Width
16, 20, 38mm
Pressure Range
-10 to 100 bar
Temperature
-40 to 120 degree
HS Code
830790000
Detailed Specifications
| Internal (mm) | External (mm) | Tolerance (mm) | Weight Kg/m | Strip Thick (mm) | Min Bend Radius |
|---|---|---|---|---|---|
| 32 | 37.5 | 0.4 | 0.550 | 0.25 | 200 |
| 38 | 43.5 | 0.4 | 0.600 | 0.25 | 200 |
| 51 | 57.0 | 0.5 | 0.750 | 0.25 | 300 |
| 76 | 83.0 | 0.8 | 2.000 | 0.25 | 500 |
| 101 | 108.0 | 1.0 | 3.000 | 0.25 | 550 |
| 150 | 157.0 | 1.2 | 4.800 | 0.45 | 800 |
Packaging & After Sales Service
🛡️ Service Commitment:
- Warranty period of one year

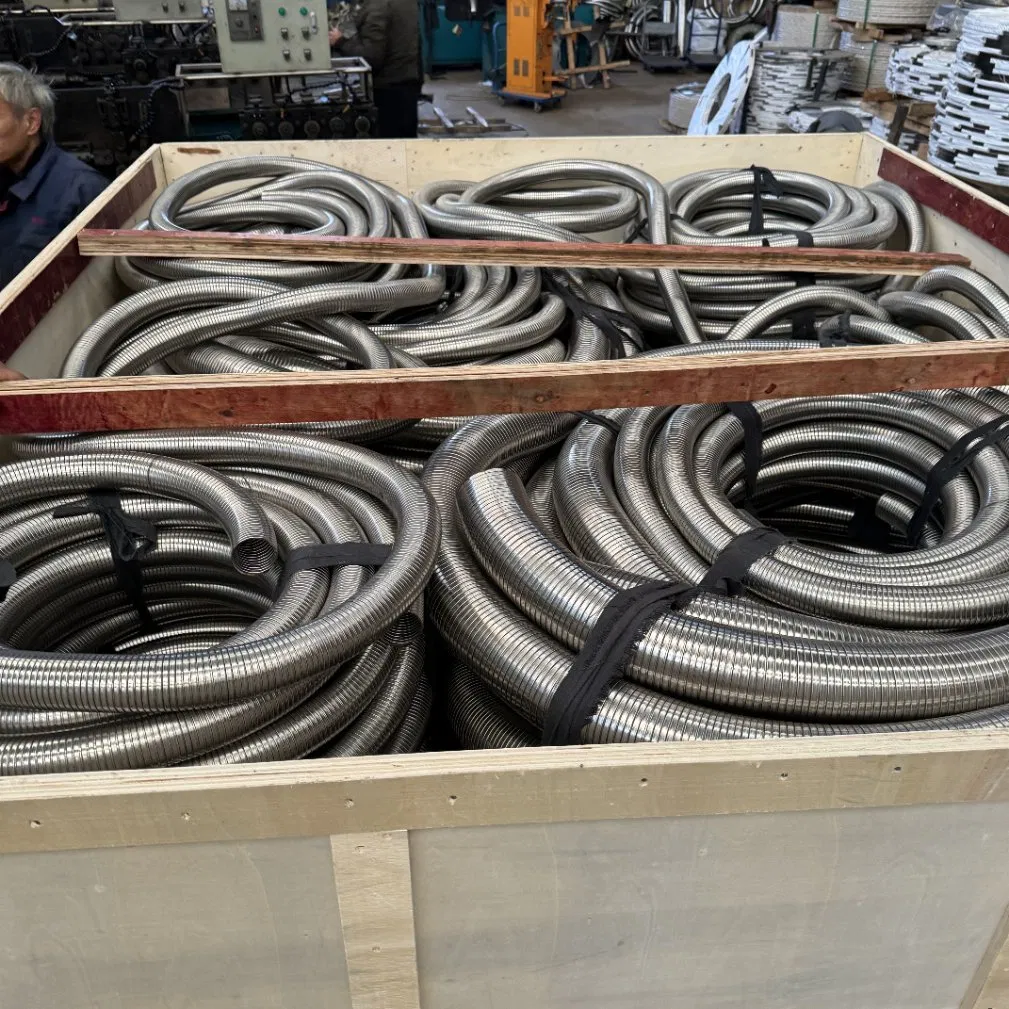

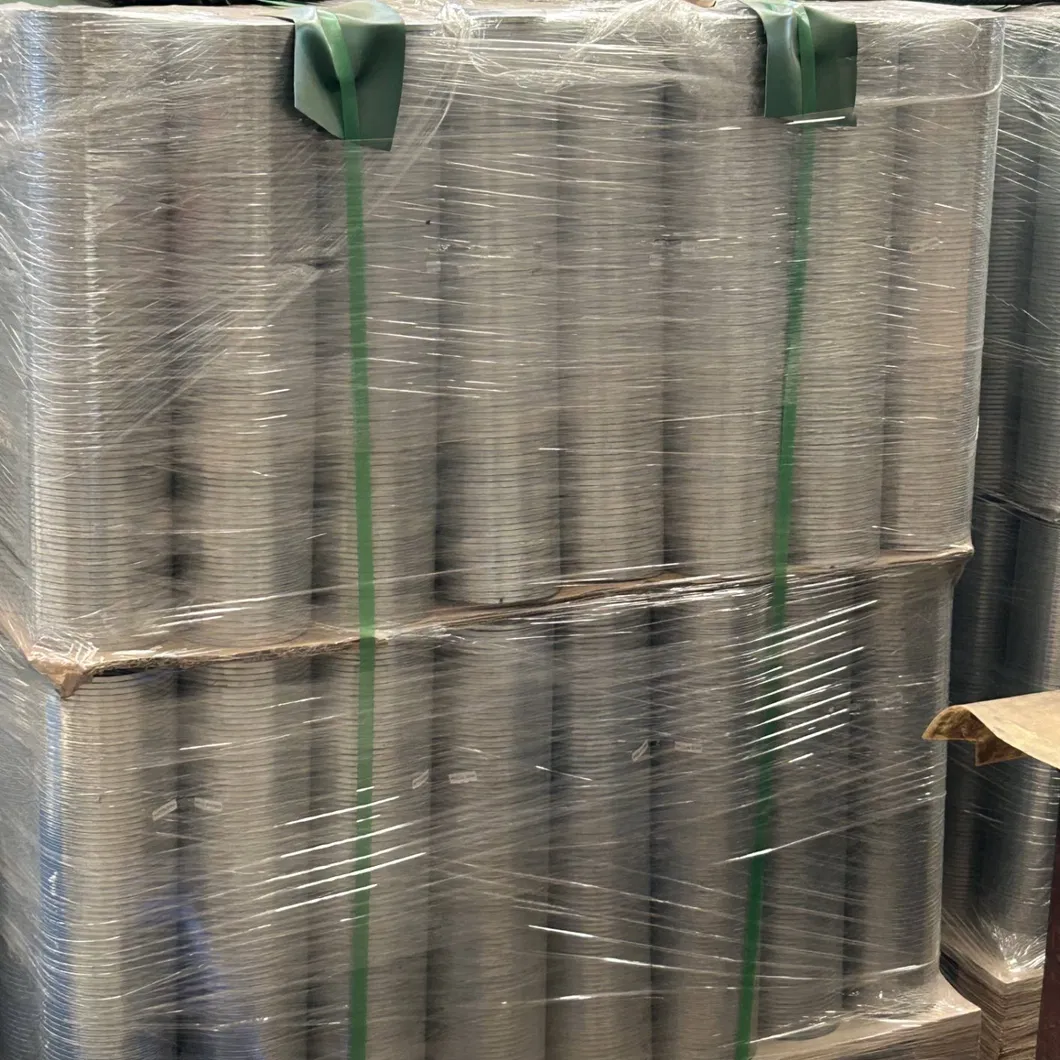

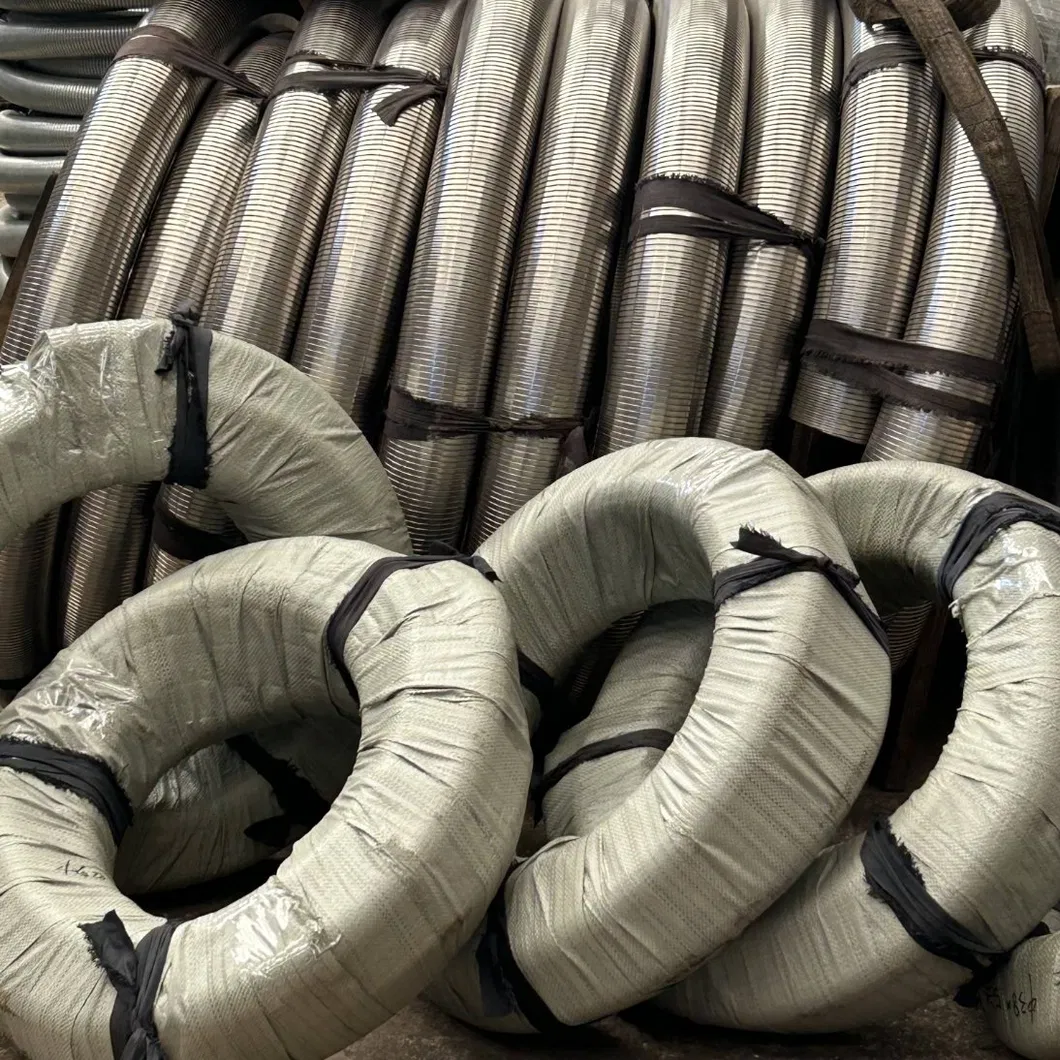

- Standard seaworthy strong packaging
- Technical support available for overseas machinery
FAQ
1. Why choose our flexible metal solutions?
We are highly professional in flexible conduit and hose manufacturing with over 30 years of industry experience.
2. What types of machinery can be provided?
We supply both Interlock hose making machines and Squarelock hose making machines for various industrial needs.
3. What size ranges can be produced?
Interlock Hoses can be produced from ID3 to ID450mm, while Square lock hoses range from ID3 to ID103mm on different machines.
4. What materials are commonly used for the hoses?
We primarily use high-grade Stainless Steel (304, 316L) and Galvanized Steel to ensure durability and resistance.
5. What information is needed for a machinery quote?
Please provide the conduit type (square/interlock), size range (DN), material requirements, and product shape (Round/Polygonal).
6. What is the standard delivery time?
Standard delivery time is approximately 15 days, depending on the specific order requirements and customization.
