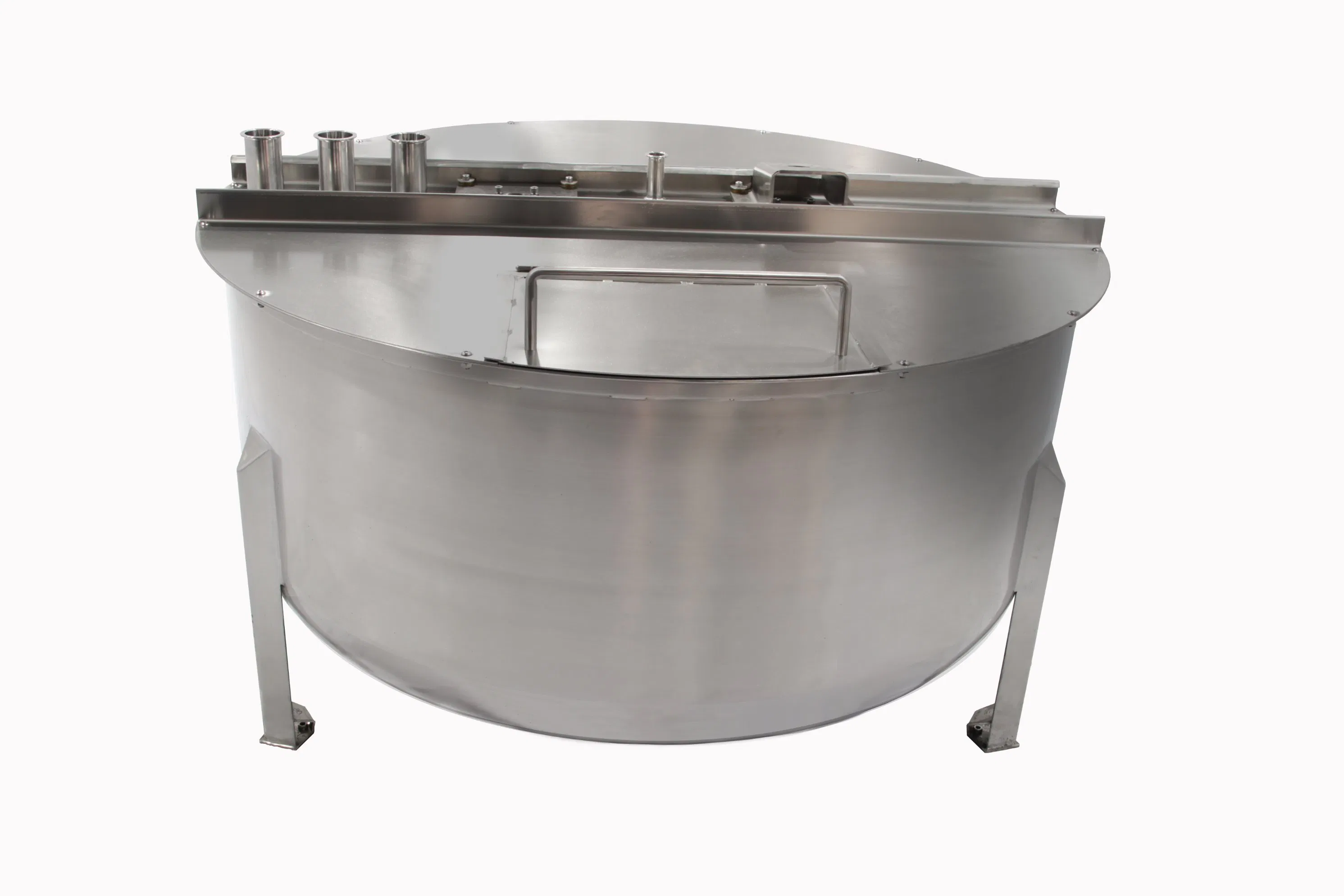

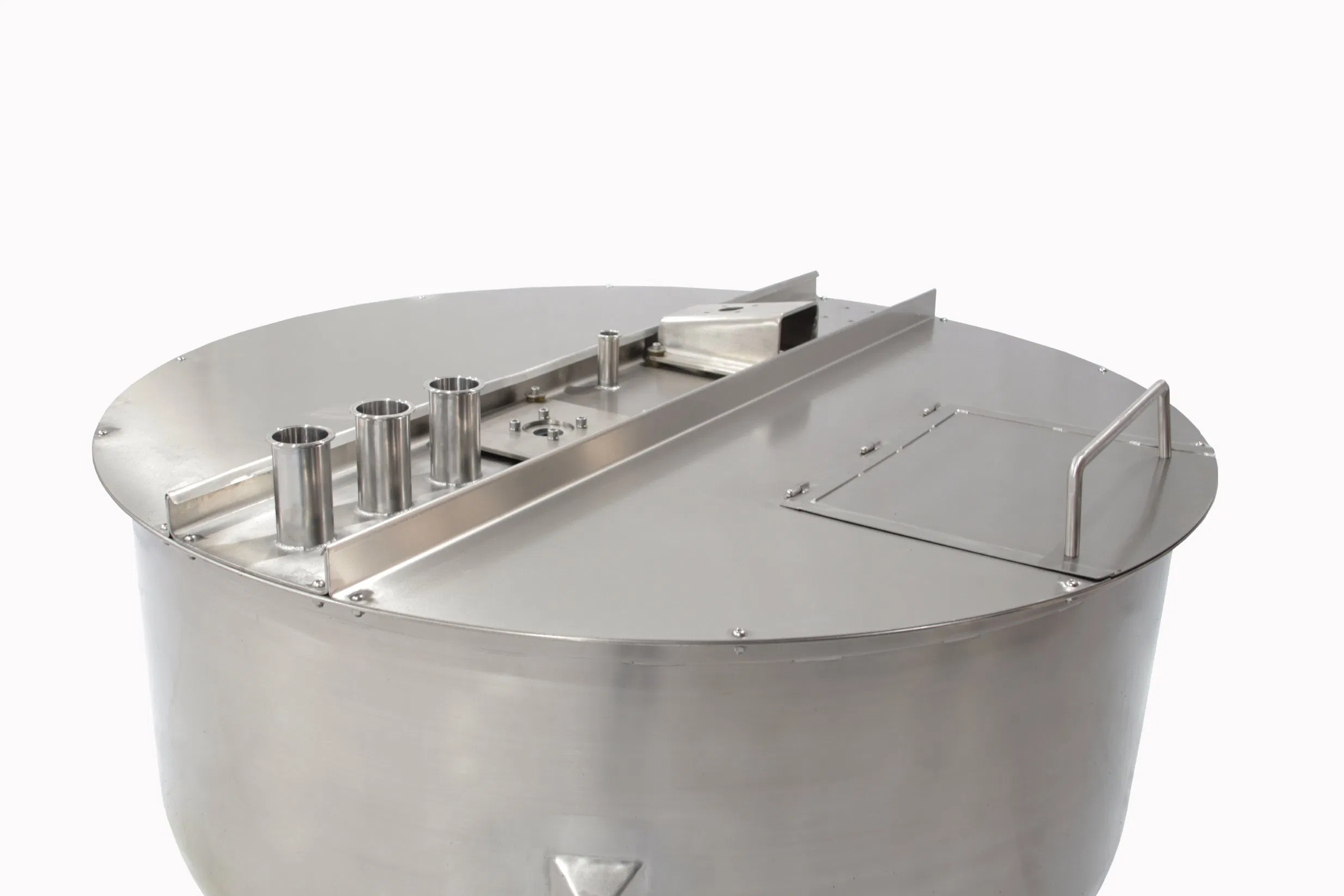

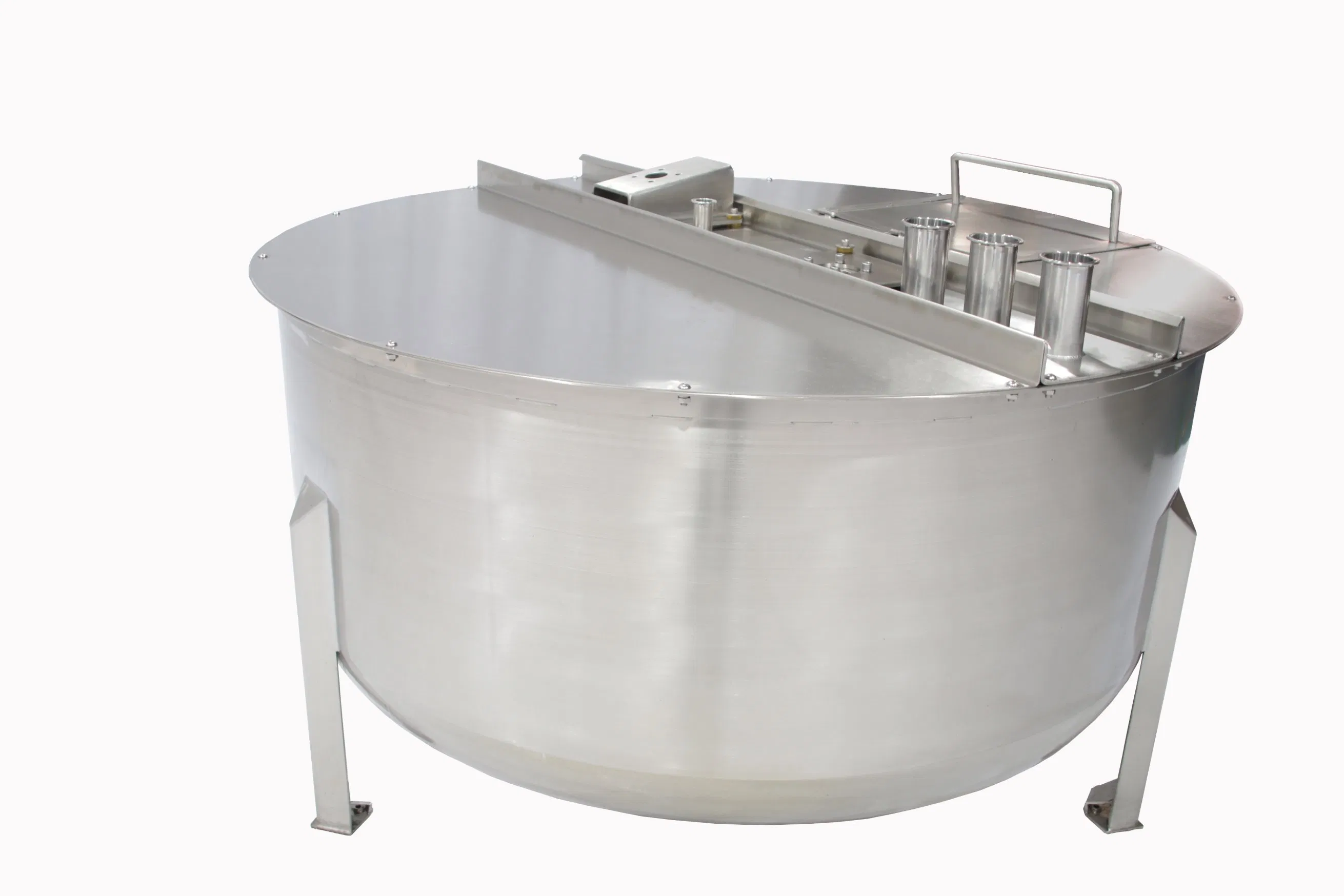

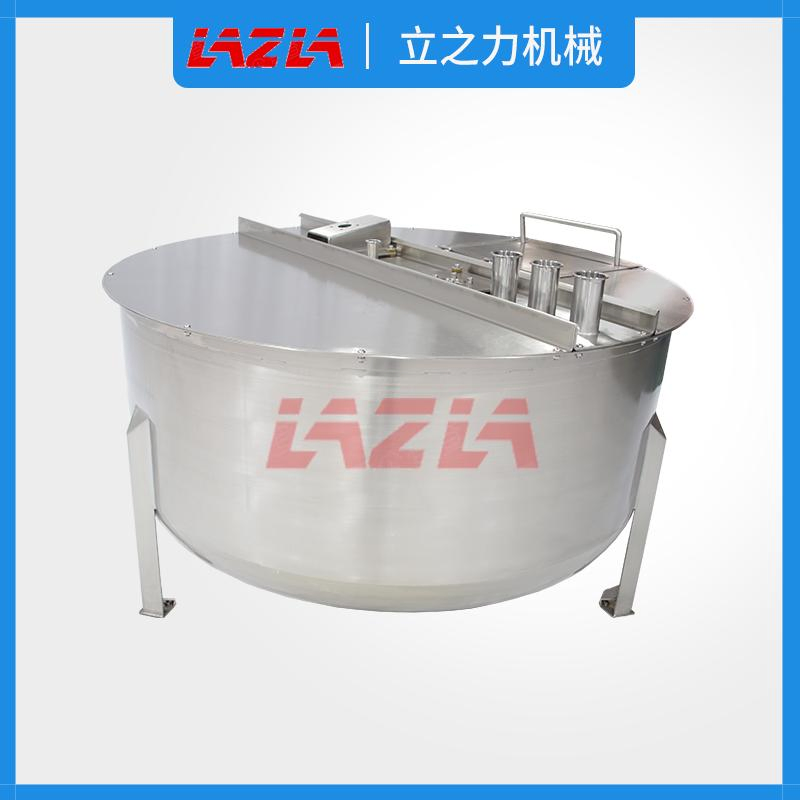

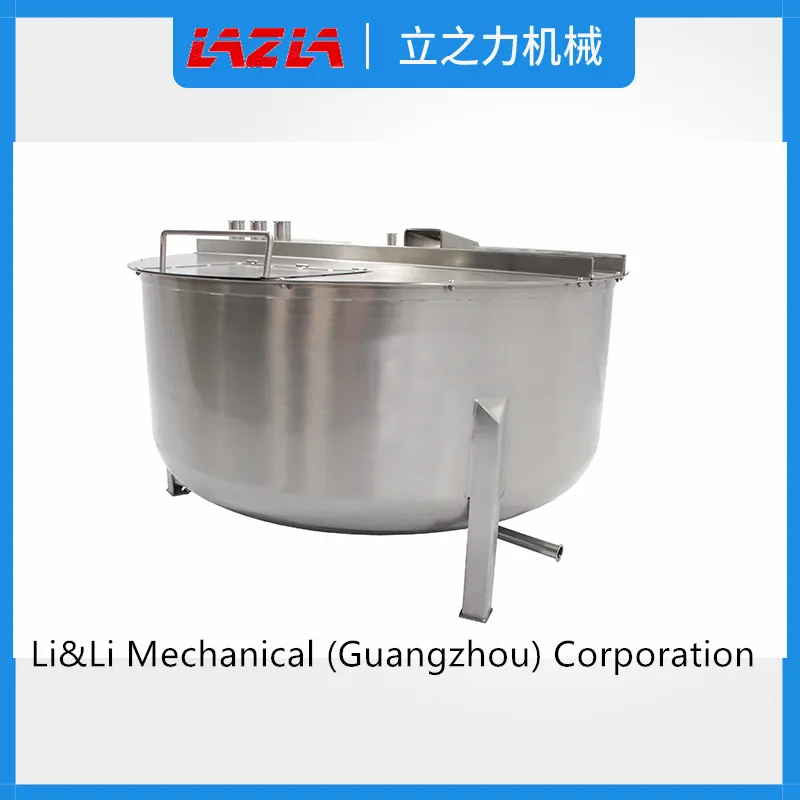

High-Quality Stainless Steel Tank for Food Grade Storage Solutions
Product Description
Stainless Steel Tank | Sanitary Storage Tank | Food Grade Tank | Large Outdoor Tank
Stainless steel storage tanks are used as liquid storage tank, detergent storage tank, temporary storage tank and water storage tank etc; such sanitary storage tanks are widely used in fields like foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

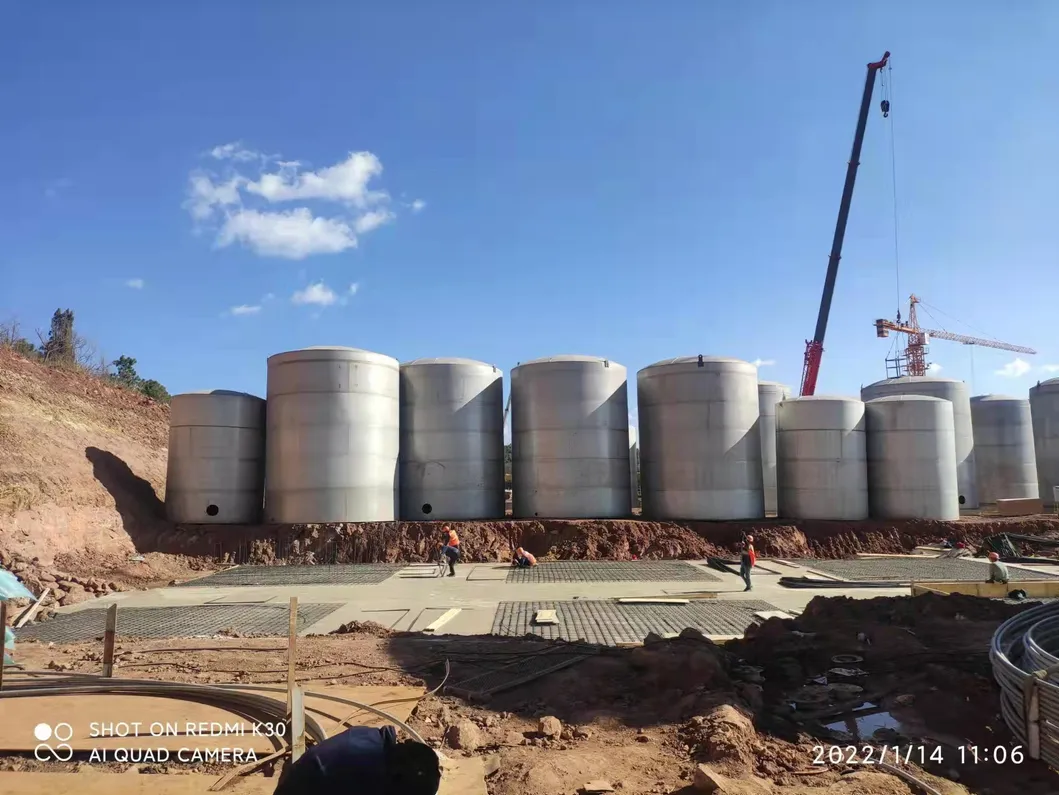

According to storage capacity, the storage tanks are classified into tanks of 1-5000m3. For storage tanks with storage capacity of more than 20 m3, It is suggested to use outdoor storage tanks. The storage tank is made of SUS316L, SUS304 or Q235 and has good heat preservation performance. Accessories include: inlet and outlet, manhole, thermometer, liquid level indicator, high and low level alarm, aseptic sampling vent, and CIP cleaning head.
| Volume | Real Cap. | Diameter | Height | Inlet | Spout | Exhaust | Manhole | Level Mouth |
|---|---|---|---|---|---|---|---|---|
| 2m3 | 2.05m3 | 1200mm | 1820mm | 50mm | 50mm | 50mm | 400mm | 25mm |
| 5m3 | 5.05m3 | 1700mm | 2250mm | 50mm | 50mm | 50mm | 400mm | 25mm |
| 10m3 | 10.5m3 | 2200mm | 2650mm | 50mm | 50mm | 50mm | 400mm | 25mm |
| 50m3 | 50.5m3 | 3200mm | 6230mm | 100mm | 100mm | 50mm | 500mm | 25mm |
