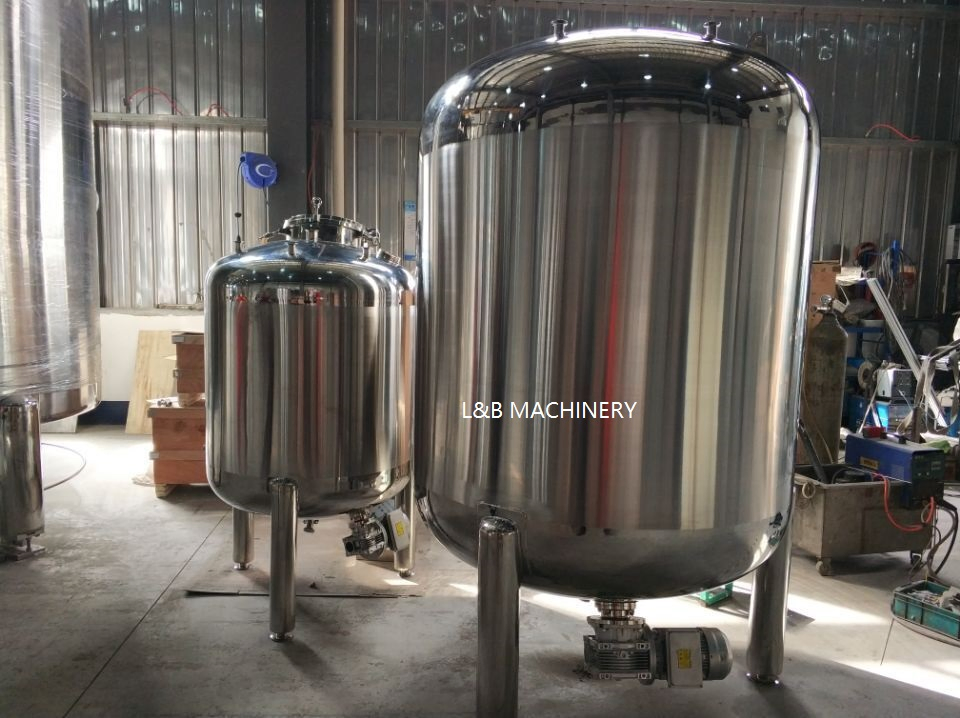

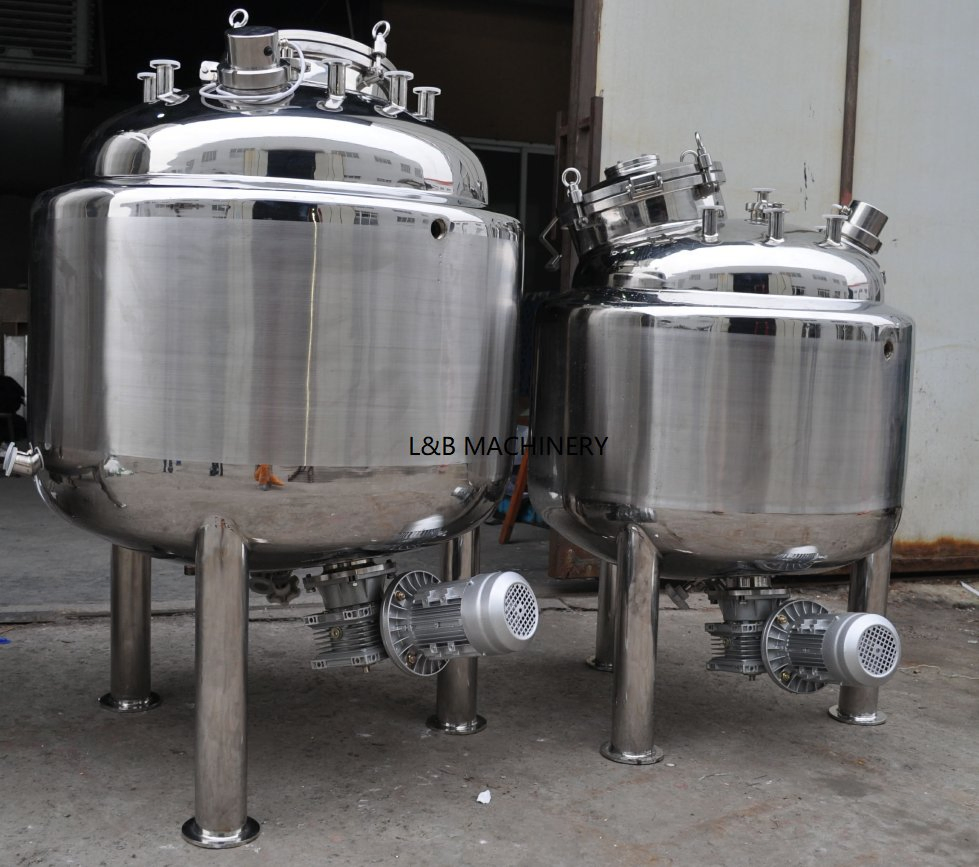

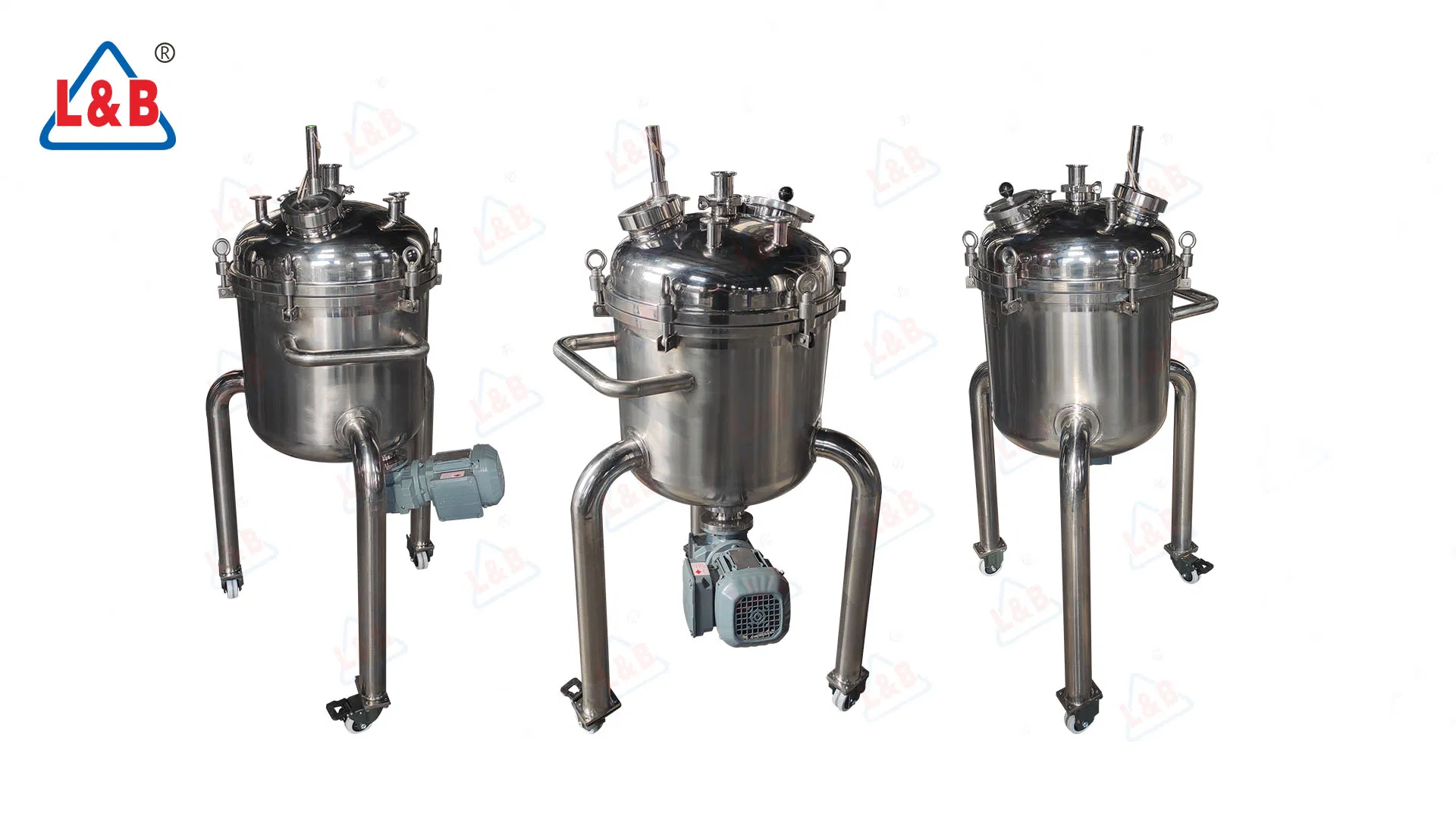

Food Grade Stainless Steel Food Grade Solution Bottom Magnetic Stirrer Mixing Tank
Product Description
Overview & Basic Info
| Model NO. | BLS-JBG | After-sales Service | Online Service Support |
| Application | Liquid, Liquid with Suspended Solids | Application Area | Pharmaceutical |
| Certification | ISO | Condition | New |
| Cooling/Heating | Water Cooling / Steam Heating | Material | Stainless Steel (SS304, SS316) |
| Mixing Capacity | 500-999L | Mixing Drum Shape | Conical |
| Stirring Type | Gravity | Warranty | 2 Year |
| Name | Pharmaceumatical Mixing Tank | Speed | 0-300rpm |
| Volume Range | 50-10000L | Operating Type | Continuous Operating |
| Production Capacity | 50000 Sets/ Year | HS Code | 8479820090 |

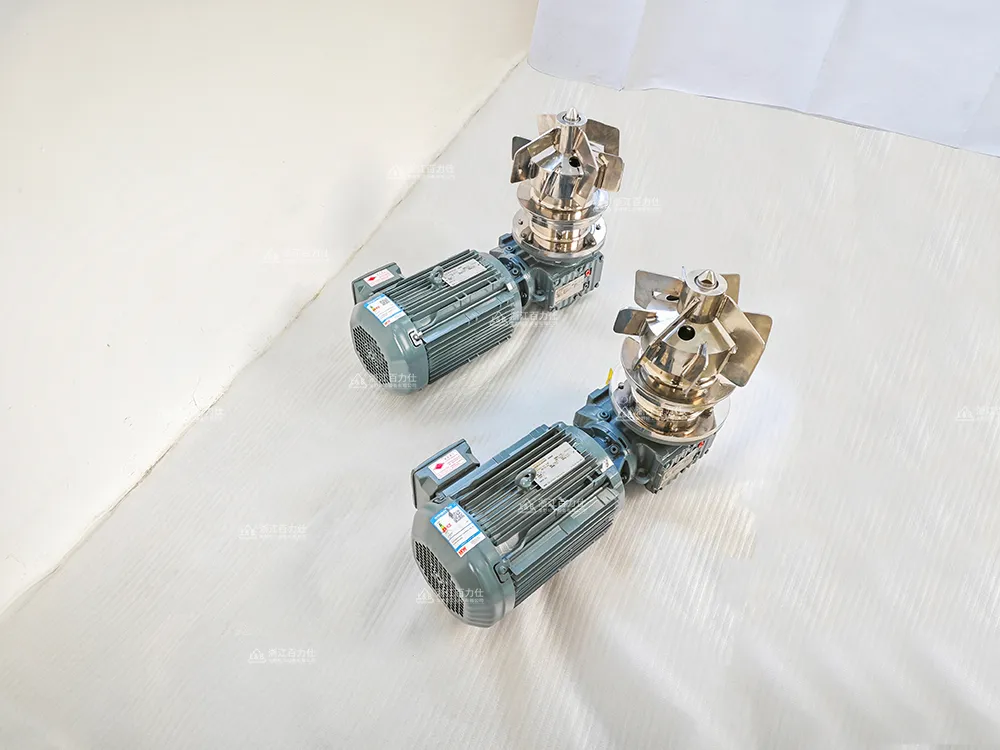

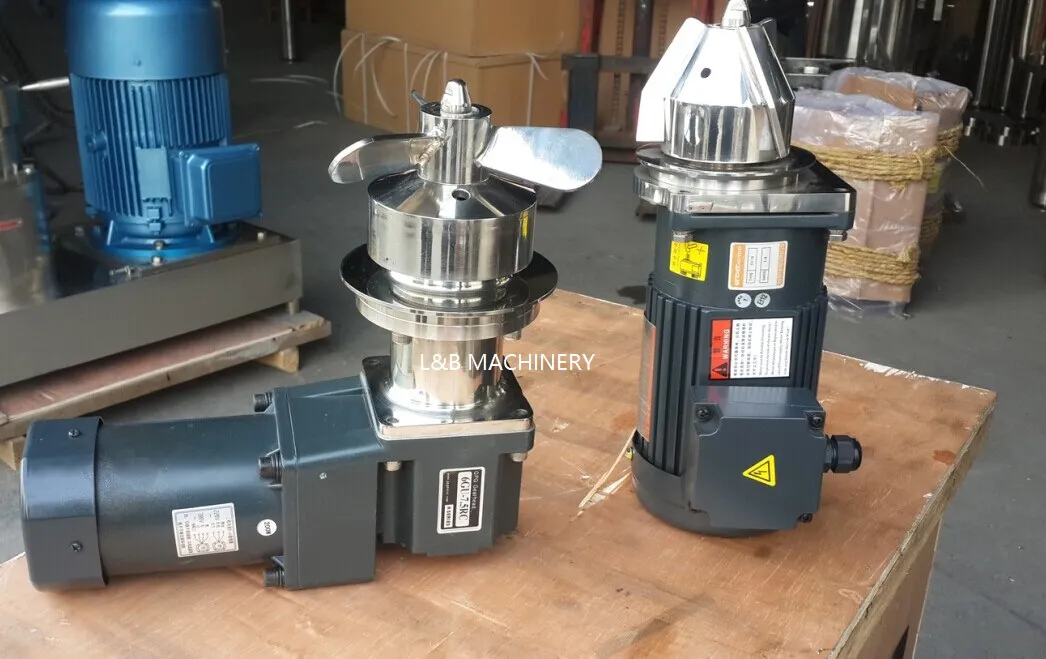

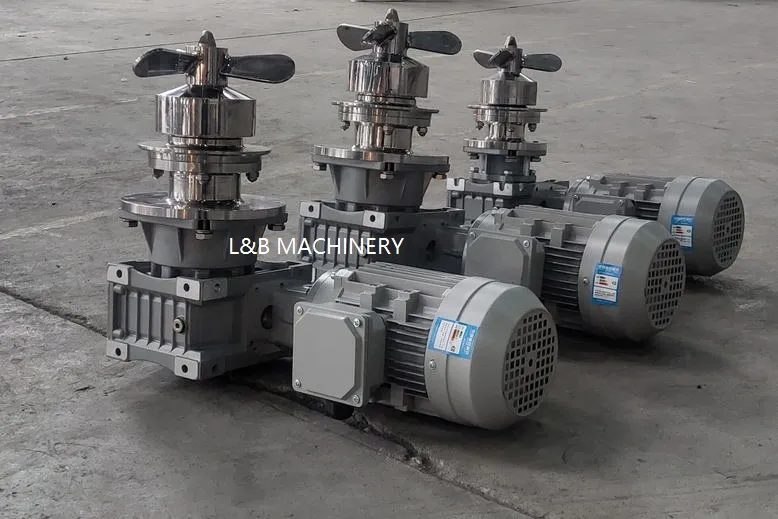

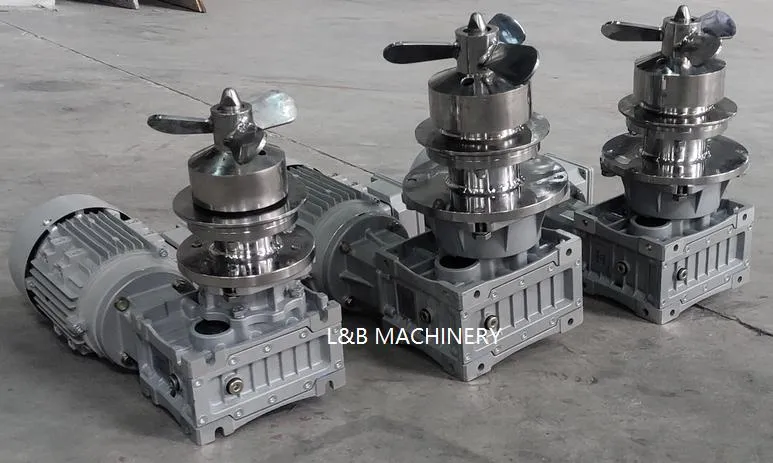

Product Information: Magnetic Mixer
Bottom Magnetic Mixer utilizes special driving and sealing technology, distinguishing it from conventional gear-drive agitators. Through magnetic couplings, torque is transmitted without direct contact with the mixing head, significantly reducing mechanical wear and extending service life.
Key Advantages:
- High blending capacity with low power consumption.
- Highly hygienic design, compatible with CIP/SIP (Steam/Hot water sterilization).
- Bayonet coupling for rapid assembly and disassembly of the drive unit.
- Zero leakage risk and no batch contamination due to hermetic sealing.
- Low shear stress, ideal for shear-sensitive biological materials.
- Minimum maintenance requirements and long-term durability.
- Full compliance with GMP standards for pharmaceutical and bio-technical industries.
Technical Product Data
| Model | Power | Volume | Speed (rpm) |
|---|---|---|---|
| CLB-20 | 0.2KW / 0.4KW | 50-200L | 120-300 |
| CLB-40 | 0.55KW / 0.75KW | 200-500L | 120-300 |
| CLB-60 | 1.1KW / 1.5KW | 500-1000L | 120-300 |
| CLB-80 | 1.5KW / 2.2KW | 800-2000L | 120-300 |
| CLB-100 | 3KW / 4KW | 1500-3000L | 120-300 |
| CLB-120 | 4KW / 5.5KW | 2000-5000L | 120-300 |
| CLB-140 | 7.5KW | 3000-10000L | 120-300 |

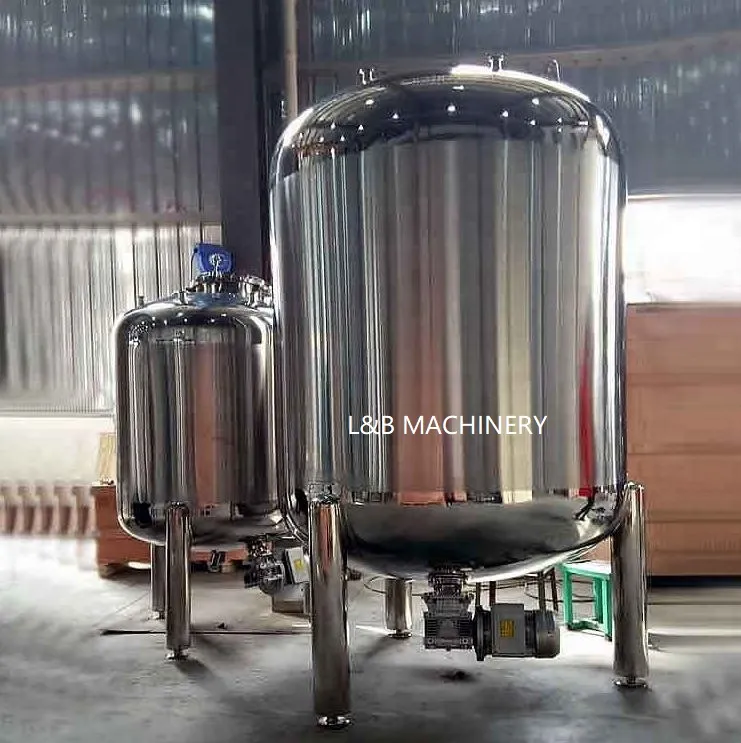

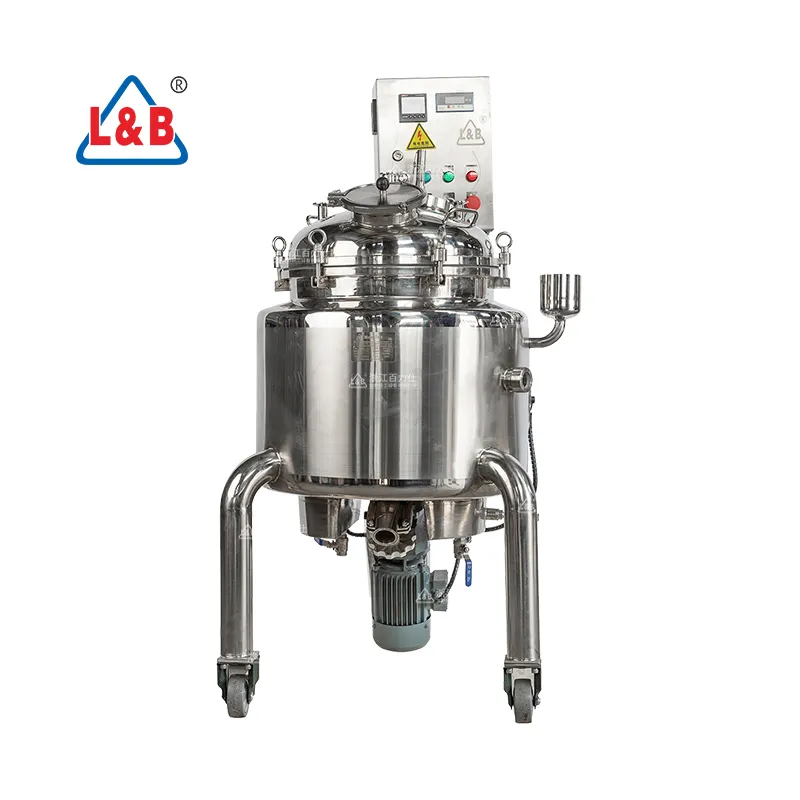

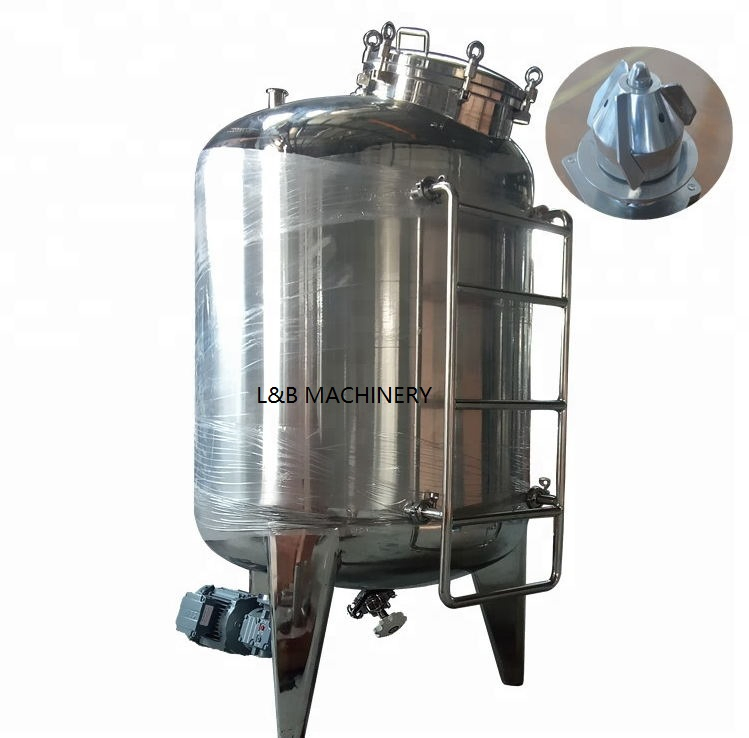

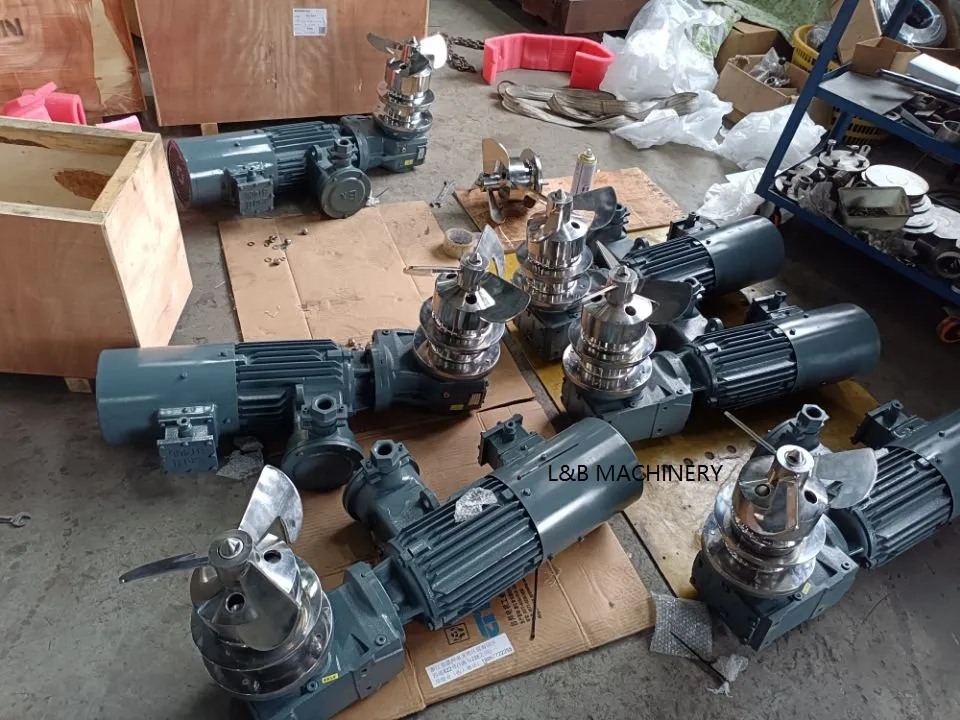

Product Gallery
Factory Overview
Frequently Asked Questions
What are the primary applications for this magnetic mixing tank?
It is widely used for the dissolution of glucose, production of vaccine suspensions, and agitation of blood fractions in pharmaceutical and bio-technical industries.
What materials are used in the construction?
The main materials are high-quality Stainless Steel SS304 and SS316, ensuring compliance with food-grade and pharmaceutical-grade standards.
How does a magnetic mixer differ from a standard agitator?
Magnetic mixers use magnetic fields to transmit torque without direct contact or mechanical seals, eliminating the risk of leakage and batch contamination.
Is the equipment easy to clean?
Yes, it features a highly hygienic design that supports easy cleaning and sterilization within the vessel using steam or hot water (CIP/SIP).
What is the capacity range available?
We offer a wide range of volumes from 50L up to 10,000L to suit different production scales.
Does the mixer support shear-sensitive materials?
Yes, the bottom magnetic mixer provides low shearing forces, making it ideal for processing shear-sensitive biological materials.
