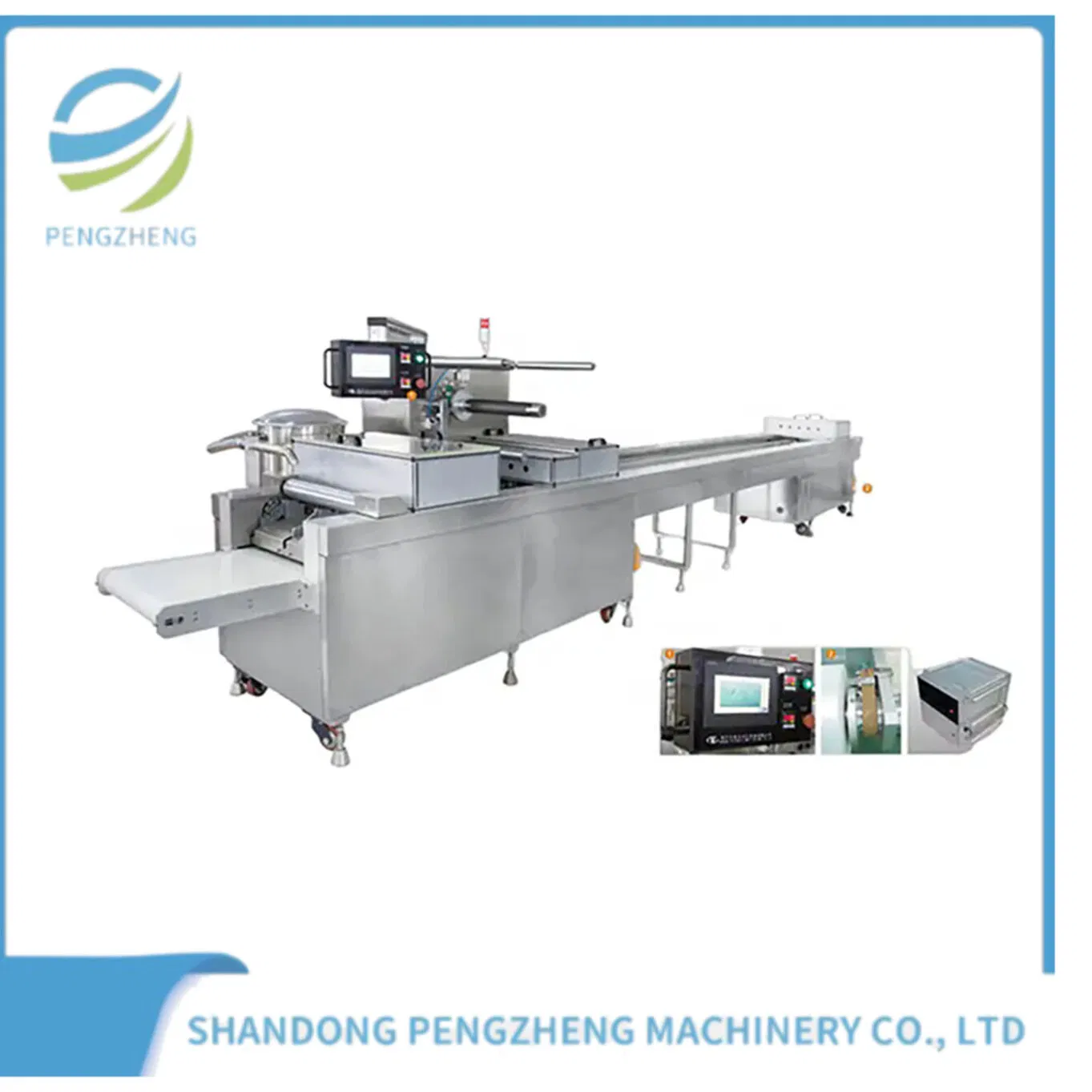

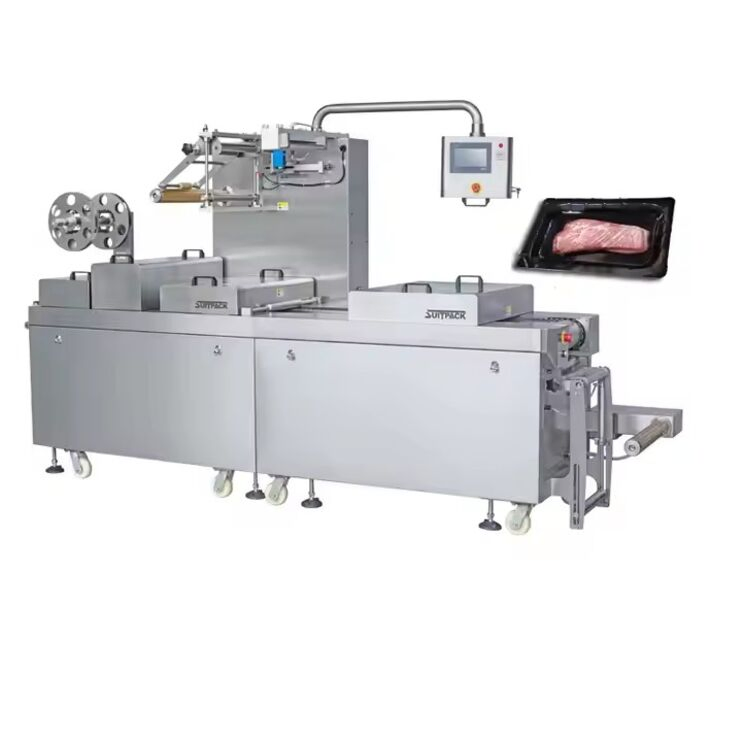

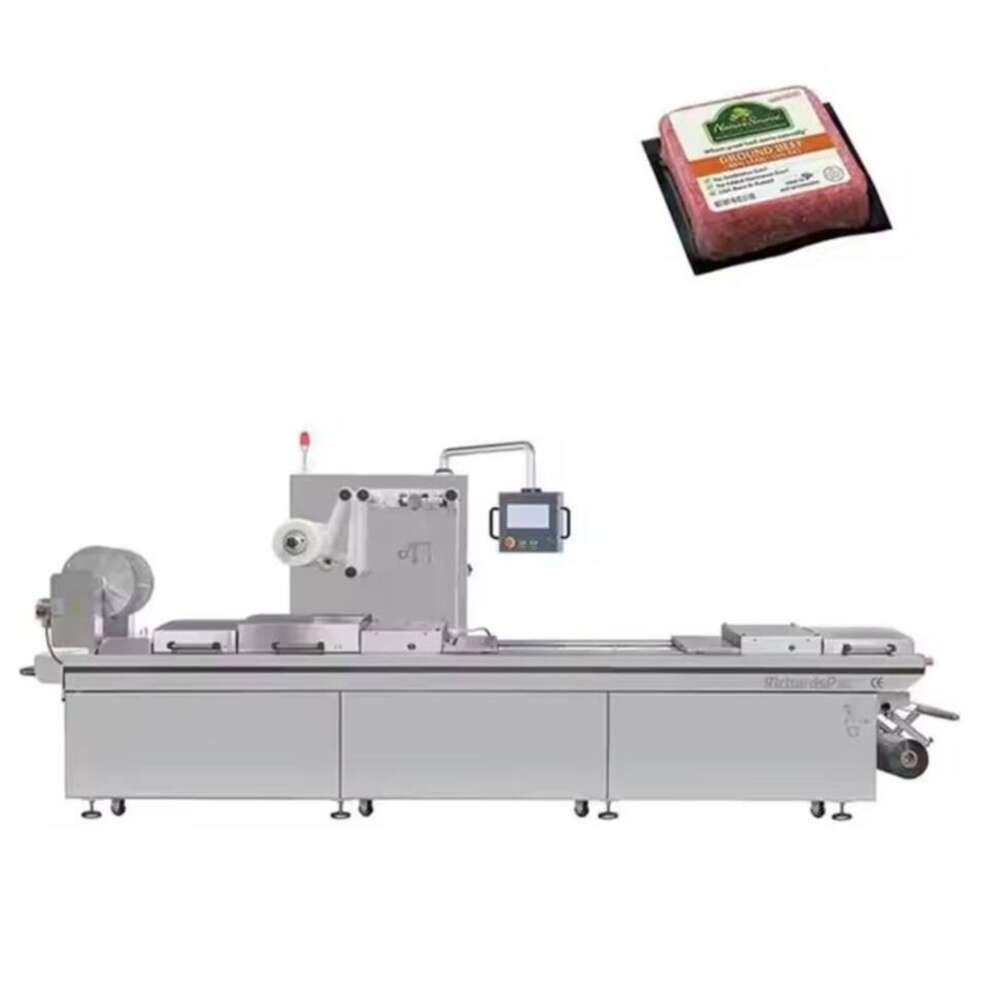

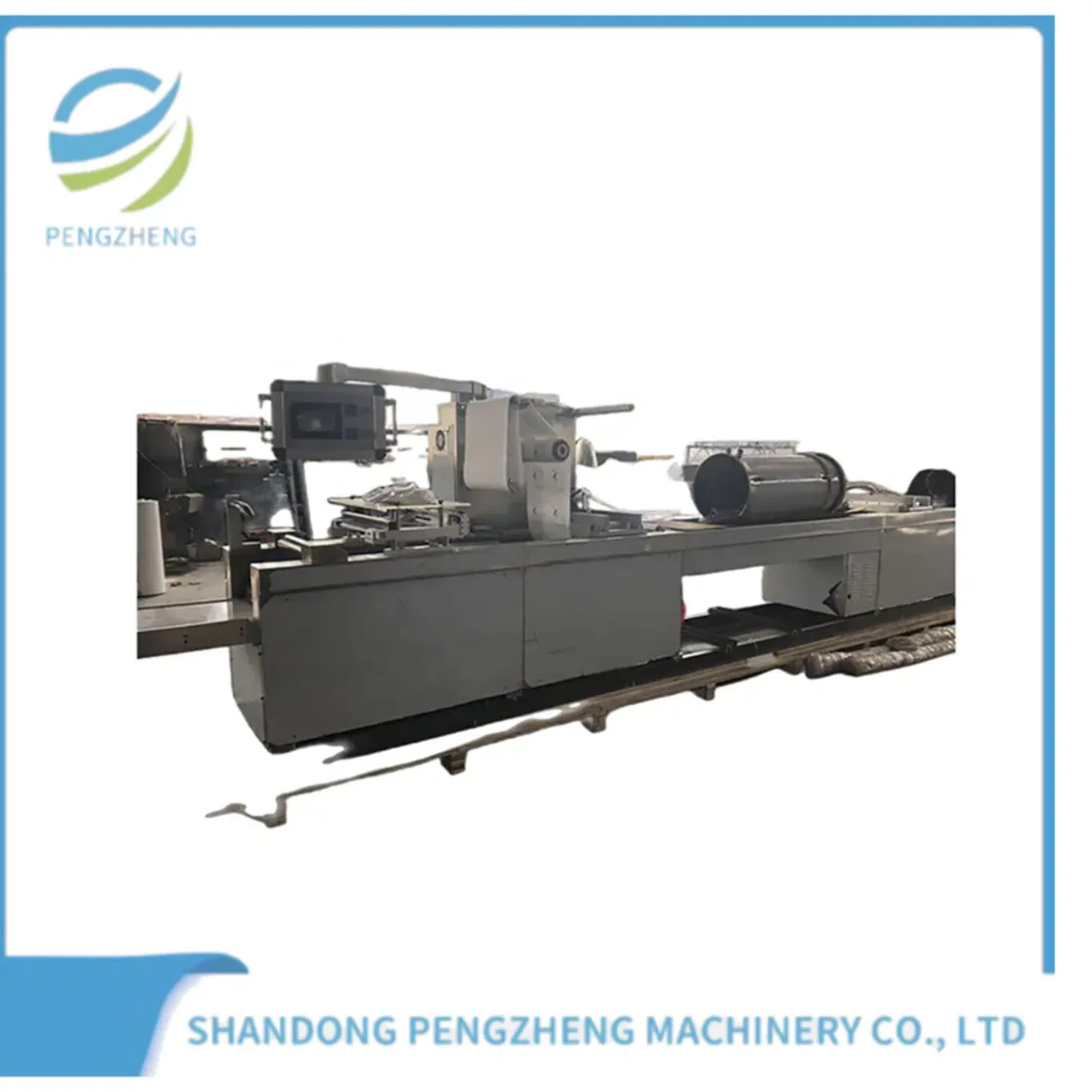

Fully Automatic Thermoforming Stretch Film Continuous Vacuum Packaging Sealing Machine for Corn, Chicken, Cheese, Beef
Product Description
1
Basic Info & Overview
Model NO.:PZ-520
Application:Food, Medical, Electronics
Automation:Automatic
Type:Thermoforming Vacuum Machine
Weight:2200 Kg
Voltage:380V/50Hz
Material:304 Stainless Steel
Speed:6-8 Times/Min
2

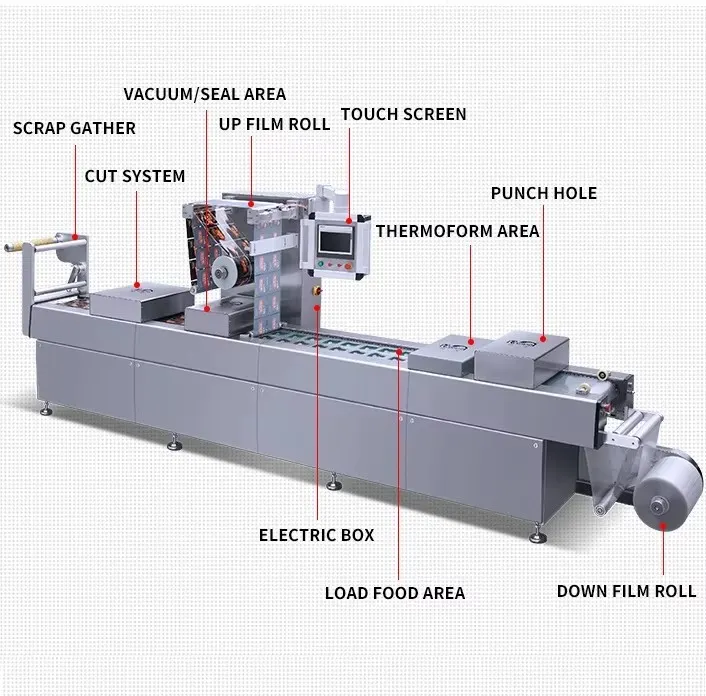

Principle

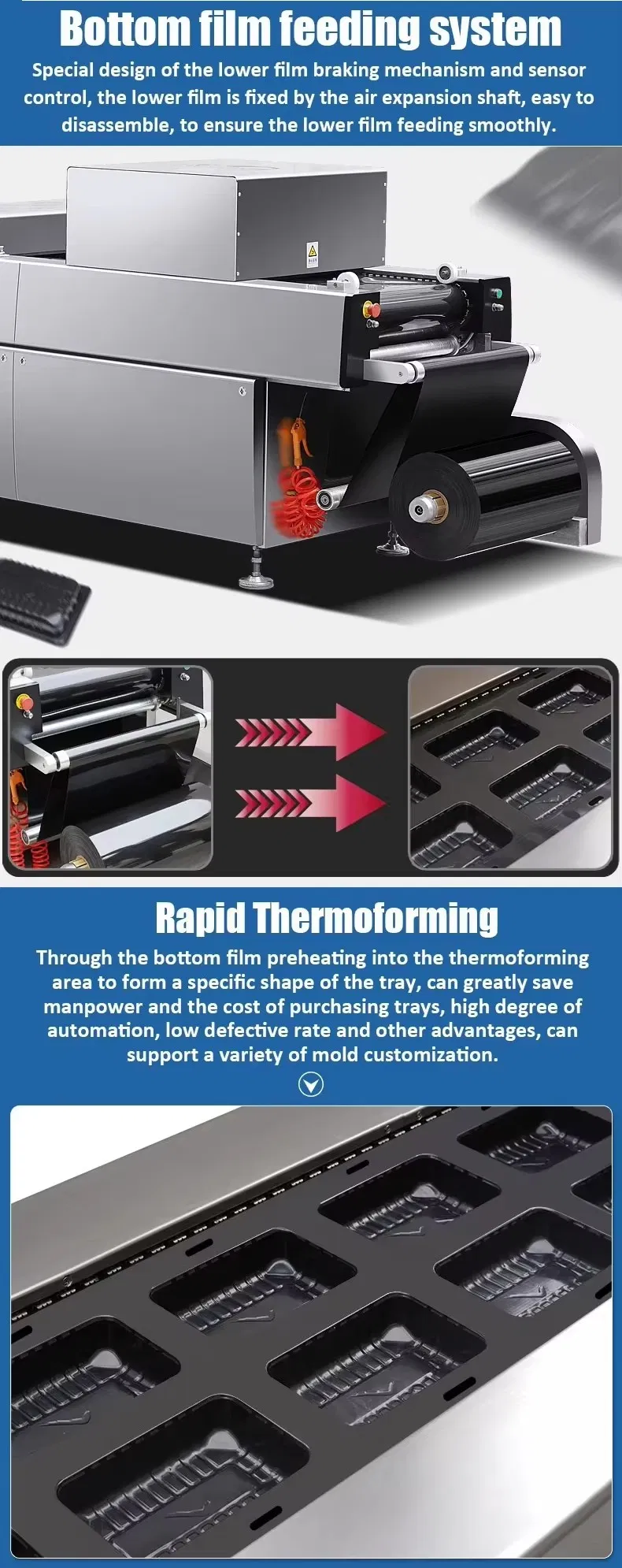

Stretch film vacuum packaging machine refers to the bottom film of the stretch film after heating, is stretched into the shape of the mold. Put the material to be packed into the formed bottom film, cover the film, and vacuum to seal. Finally, the whole package is divided into independent packaging bags.
3

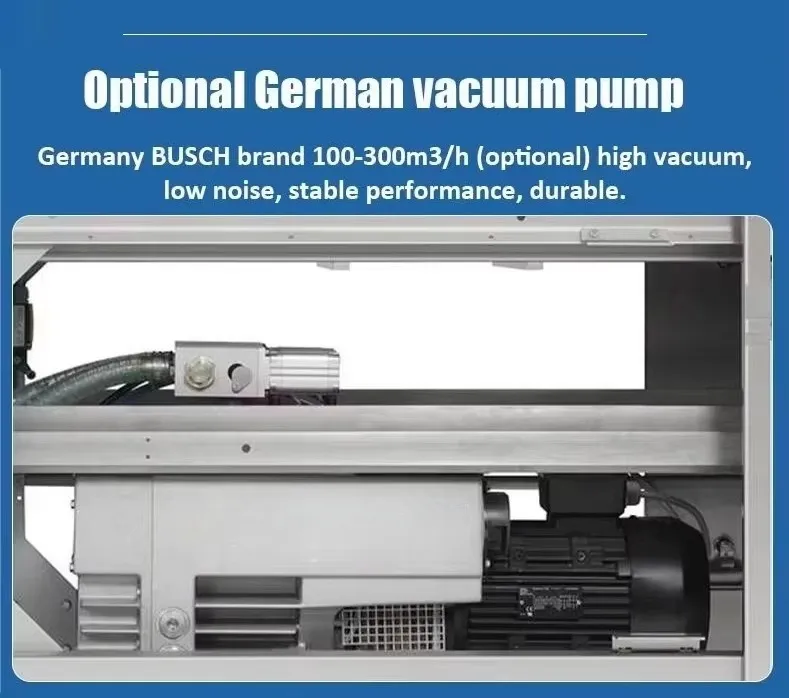

Features & Advantages
- High Efficiency: Capacity of 10,000-12,000 pieces per hour with damage rate as low as 1%-2%.
- Stability: Low failure rate and easy operation during continuous production.
- Versatility: Equipped with multiple sets of molds, suitable for 40g to 100g products.
- Labor Saving: Only needs 3-4 people to operate the entire line.
- Low Maintenance: Annual consumables cost is less than 3,000 yuan.
4
Application
5
Product Parameters
| Speed | 8600 pcs/h | Upper Film Width | About 540mm / 660mm |
| Down Film Width | About 520mm / 560mm | Vacuum Degree | ≤200Pa |
| Compressed Air | ≥0.6MPa | Cooling Water | ≥0.1MPa |
| Power Supply | 380V/50HZ | Total Power | 15-18KW |
| Dimensions | 6800x1100x1850mm | Weight | 2200kg |
6
After-Sales Service
- Professional guidance on unloading and placement at destination.
- Senior engineers provide video guidance for installation and debugging.
- Full system training for operators.
- 12-month warranty with life-long maintenance service.
- Custom decoration and efficiency improvement solutions.
7
Packaging & Shipping
Frequently Asked Questions
Q1: What materials can this machine pack?
A: It is suitable for solids, liquids, pastes, and powders, including food (meat, corn, cheese), medical instruments, and electronic components.
Q2: How many people are needed to operate the machine?
A: The high degree of automation means only 3-4 people are required for the entire operation.
Q3: Is the machine compatible with different product sizes?
A: Yes, the equipment can be equipped with multiple sets of molds which are easy to replace for different product weights and sizes.
Q4: What is the warranty period?
A: We provide a 12-month warranty and life-long maintenance support.
Q5: Does the machine include an inflatable device?
A: Yes, this model comes with an inflatable device for modified atmosphere packaging.

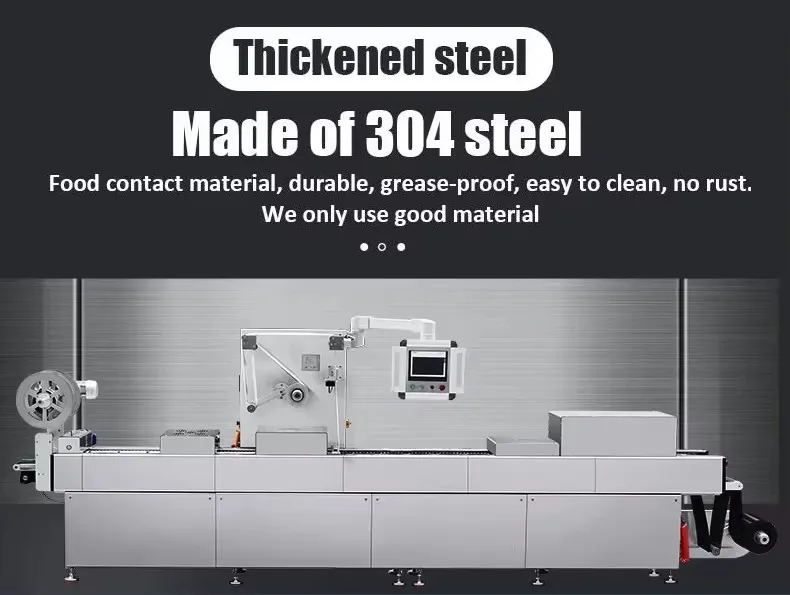

Q6: What is the main material of the machine?
A: The machine is constructed from 304 food-grade stainless steel for durability and hygiene.
