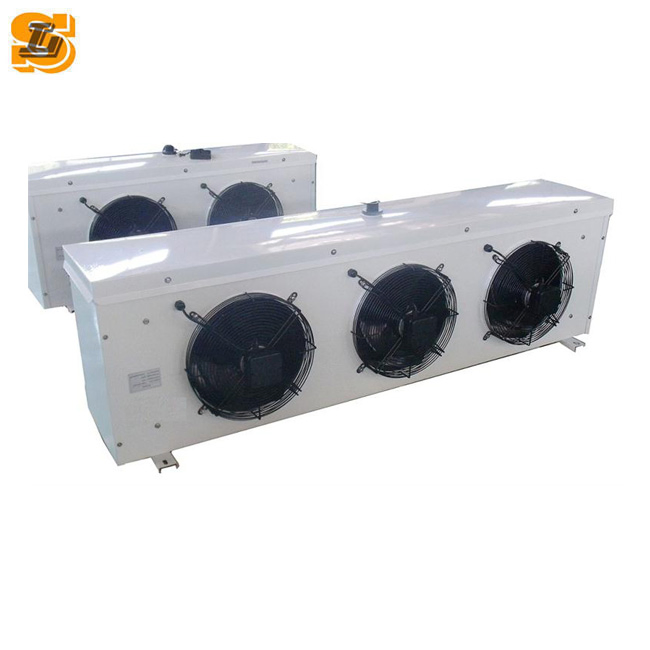

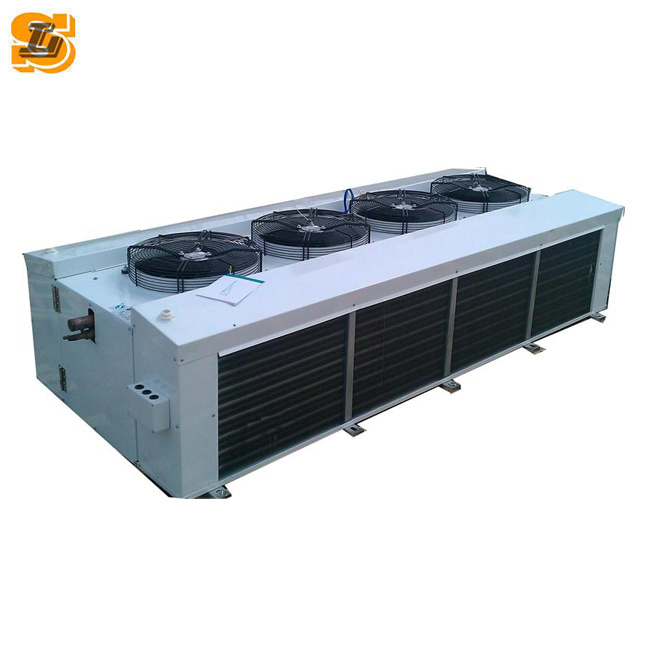

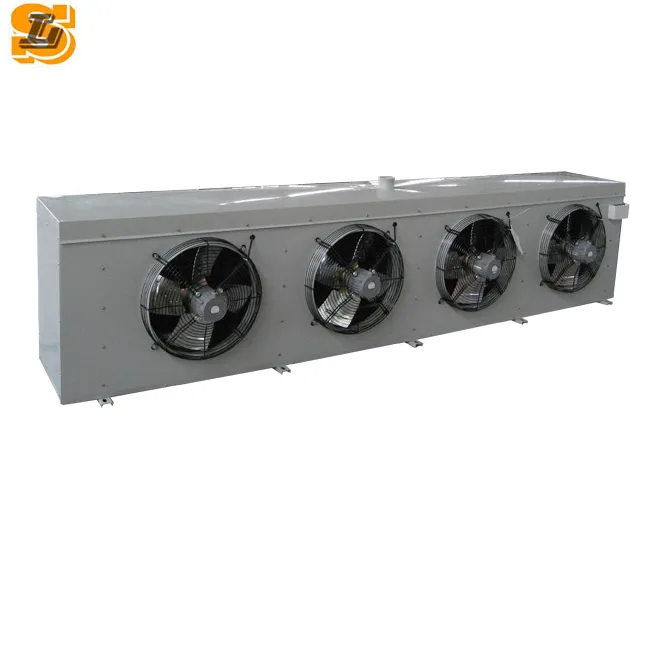

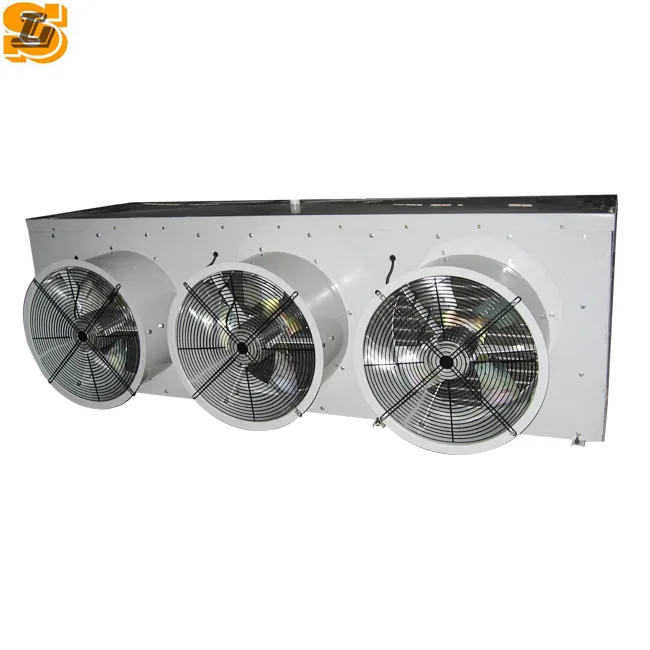

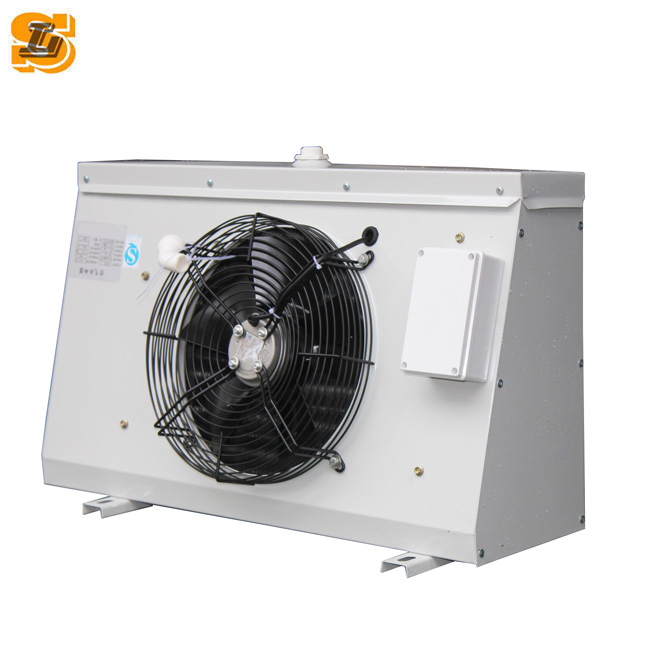

2023 Industrial Air Coolers with Cu or Stainless Steel Tubing for Cold Stores
Product Description

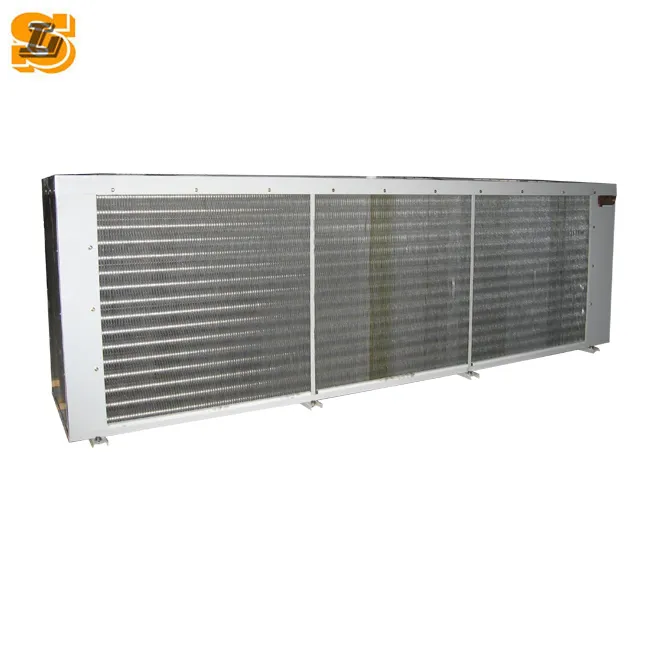

- High efficiency staggered fin pattern design
- Optimized sine waved fin for high performance
- Internal grooved tube for higher heat exchanger efficiency
- Optimized circuiting for better evaporation
- Optimized air flow to reach max. Capacity
- Robust,state-of-the-art sheet metal design
- Casing with white coating for corrosion protection
- Dual drip tray design to avoid water condensation
- Tailor made unit cooler for special application
- Optional defrost (Electric, water & hot gas)

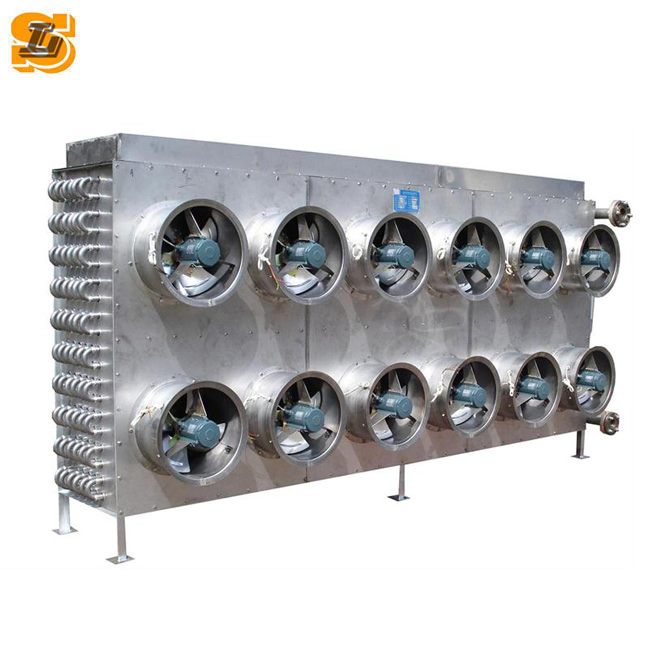

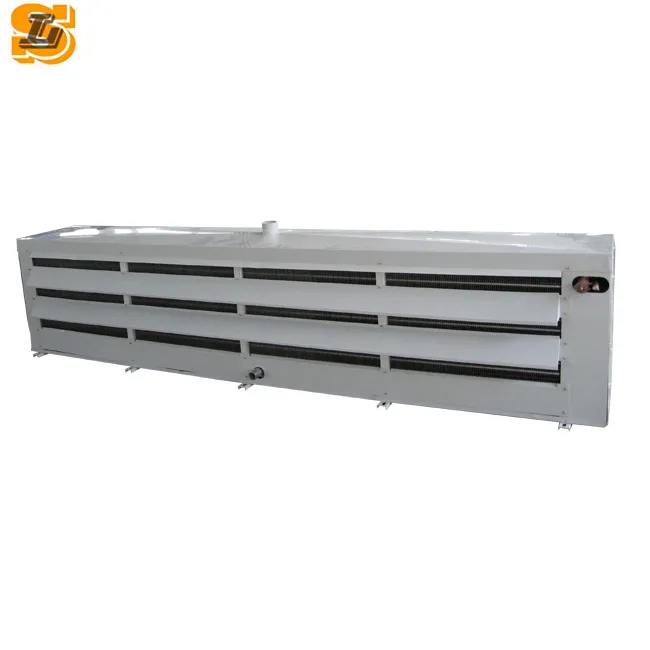

- Special "Floating Tube" design for large units
- Available for CO2-DX unit cooler up to 40 bar
| Model | Ref. Capacity W | Area (m2) | Fin Pitch | Fan Qty | Dia(mm) | Air Flow(m3/h) | Voltage | Defrost(kw) |
|---|---|---|---|---|---|---|---|---|
| DL-2.1/10 | 2100 | 11 | 4.5 | 1 | 330 | 2200 | 380 | 1.26 |
| DL-4.2/20 | 4200 | 20 | 4.5 | 2 | 330 | 2*2200 | 380 | 1.8 |
| DD-6.0/30 | 6000 | 31 | 6.0 | 2 | 400 | 2*5000 | 380 | 3.0 |
| DD-20.0/100 | 20000 | 100 | 6.0 | 3 | 500 | 2*6000 | 380 | 8.0 |
| DJ-7.8/40 | 7800 | 40.2 | 9.0 | 2 | 500 | 2*6000 | 380 | 3.6 |
Ideal for textile, machinery, chemical, and food processing industries. Widely used in cold storage, supermarkets, hospitals, and greenhouses.
A: Casing options include white-coated galvanized steel for corrosion protection, stainless steel (SS), or aluminum (Al) for specific applications.
A: We offer electric defrost, water defrost, and hot gas defrost options to suit different operating environments.
A: Yes, they are designed for high humidity places like textile plants and planting greenhouses, with dual drip tray designs to manage condensation.
A: Yes, fin spacing is optional (4.5mm, 6.0mm, 9.0mm) to optimize performance and minimize frost accumulation based on your specific application.
A: Our units are compatible with R410A, R407C, R134A, and we also provide units for CO2-DX applications up to 40 bar.
A: Absolutely. We offer customized brine air coolers and tailor-made unit coolers for special industrial requirements.
